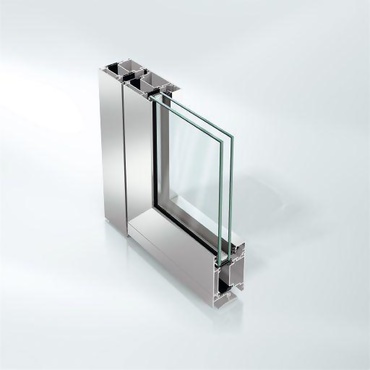

Door ADS 65

The new Schüco Door ADS 65 is suitable for economical entrance solutions in conjunction with very good thermal insulation. Optional fittings also allow it to be used as a multi-purpose door and integrated in the building security and building management system. In conjunction with the Schüco facade and window systems, the modern design gives the developer numerous design options for the building envelope.

The modern entrance solution for efficient building envelopes that require thermal insulation.

  • Residential Line (RL), SoftLine (SL) or Heavy Duty door (HD) models
  • Automatic door seal
  • Easy-access solutions
  • Concealed hinges
  • Leaf-enclosing infill panel
  • Emergency fittings
  • Emergency exit switch
  • Access control / door manager
  • Radio control
  • Integration in building management system
หมวดหมู่:
PRODUCT BENEFITS
  • Uf value 2.3 W/m2K
  • 147 mm face width
  • Barrel hinge, infinitely adjustable in three dimensions
  • Almost flush-fitted rosette
  • Burglar-resistant up to WK3

TECHNICAL INFORMATION

System basic depth
  • 65 mm
Min. face width
  • 147 mm
Uf value of frame (≥)
  • 2.2 W/(m²·K)
Max. glass/panel thickness
  • 45 mm
Max. sound reduction Rwp
  • 43 dB(A)
Air permeability
  • Class 2
Watertightness
  • Class 5A
Burglar resistance
  • Up to RC3
Wind load resistance
  • Class C3
CE marking
  • Ja
Max. vent weight
  • 150 kg
Area of application
  • External use
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 5
Min.-max. glass/panel thickness
  • 4…45 mm
Mechanical strength
  • Class 3
Impact resistance
  • Class 1
SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Thermally insulated
DESIGN
  • Framed look
FUNCTIONS
  • Increased security
Max. height
  • 2500 mm
Max. width
  • 1250 mm
Min.-max. height
  • …2500 mm
Min.-max. width
  • …1250 mm
Behaviour between different climates
  • Class 3(d),3(e)
Opening type
  • Side-hung
  • Inward and outward
Type of design
  • Single-vent
  • Double-vent
  • Single-vent and side section
  • Double-vent and side section
  • Single-vent with toplight
  • Double-vent with toplight
  • Single-vent with toplight and side section
  • Double-vent with toplight and side section
  • Single-vent with side section, right
  • Single-vent with side section, left
  • Single-vent with side section, right and left
  • Single-vent with side section and toplight
  • Double-vent with side section, right
  • Double-vent with side section, left
  • Double-vent with side section, right and left
Door threshold
  • Aluminium
  • PVC-U
  • Automatic door gasket
  • Flat door threshold
Vent option
  • All around
  • Sill rail profile
  • Adjustable sill
Infill type
  • Insert panel infill
  • Door infill, leaf enclosing on one side
  • Door infill, leaf-enclosing on two sides
DIN direction
  • DIN LH / RH

CAD DATA

TEST DOCUMENTS

Type of document
Type of test Result
Doc. no. / Download
Classification report
Airborne sound insulation 36 (-2,-5)
Airborne sound insulation 40 (-2;-5)
Airborne sound insulation 42 (-1;-4)
16237452/2e (pdf, 577 KB)
Classification report
Airborne sound insulation 36 (-2;-5)
Airborne sound insulation 41 (-2;-6)
Airborne sound insulation 43 (-1;-4)
16237452/3e (pdf, 2 MB)
Classification report
Airborne sound insulation 35 (-1;-4)
Airborne sound insulation 39 (-2;-5)
Airborne sound insulation 40 (-2;-5)
Airborne sound insulation 40 (-1;-3)
Airborne sound insulation 42 (-1;-4)
16237452/4e (pdf, 569 KB)
Classification report
Airborne sound insulation 35 (-1;-4)
Airborne sound insulation 39 (-2;-5)
Airborne sound insulation 40 (-2;-5)
Airborne sound insulation 40 (-1;-3)
Airborne sound insulation 42 (-1;-4)
16237452/4e (pdf, 3 MB)
Classification report
Airborne sound insulation 36 (-2,-5)
Airborne sound insulation 40 (-2;-5)
Airborne sound insulation 42 (-1;-4)
16237452/2e (pdf, 2 MB)
Classification report
Airborne sound insulation 36 (-1;-4)
Airborne sound insulation 40 (-1;-5)
Airborne sound insulation 42 (-1;-4)
16237452/1e (pdf, 2 MB)
Classification report
Airborne sound insulation 36 (-1;-4)
Airborne sound insulation 40 (-1;-5)
Airborne sound insulation 42 (-1;-4)
16237452/1e (pdf, 575 KB)
Classification report
Airborne sound insulation 36 (-2;-5)
Airborne sound insulation 41 (-2;-6)
Airborne sound insulation 43 (-1;-4)
16237452/3e (pdf, 568 KB)
