FABRICATION BENEFITS
- Can be integrated in Schüco Facade Systems
- Use with systems in the Schüco AWS series
- Use of identical components for different basic depth to reduce the number of components and to simplify logistics and storage
- Range of fittings tailored to the individual series
- Adjustable sill

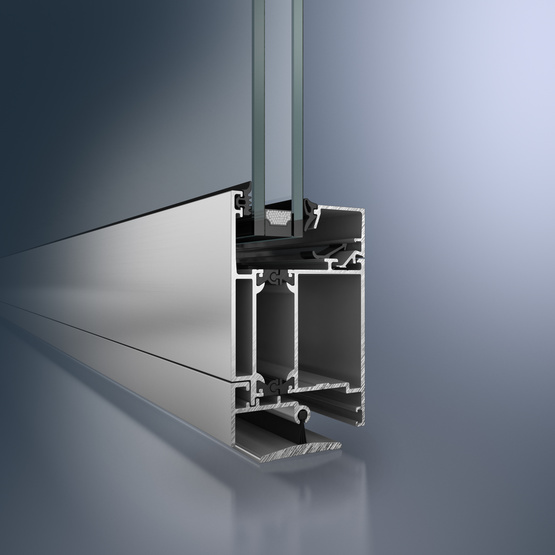

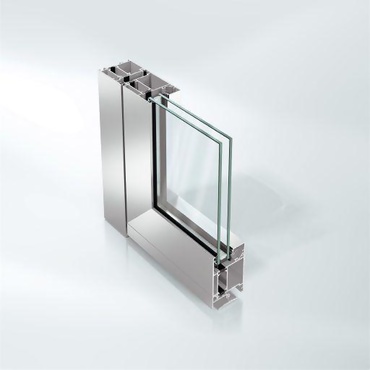

GALLERY
TECHNICAL INFORMATION
- System basic depth
-
- 65 mm
- Min. face width
-
- 147 mm
- Uf value of frame (≥)
-
- 2.9 W/(m²·K)
- Max. glass/panel thickness
-
- 45 mm
- Max. sound reduction Rwp
-
- 43 dB(A)
- Air permeability
-
- Class 2
- Watertightness
-
- Class 5A
- Burglar resistance
-
- Up to RC3
- Wind load resistance
-
- Class C3
- CE marking
-
- Ja
- Max. vent weight
-
- 200 kg
- Area of application
-
- Residential projects
- Commercial projects
- Proof of durability
-
- Class 8
- Min.-max. glass/panel thickness
-
- 4…45 mm
- Mechanical strength
-
- Class 3
- Impact resistance
-
- Class 1
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Framed look
- FUNCTIONS
-
- Increased security
- Max. height
-
- 3000 mm
- Max. width
-
- 1400 mm
- Min.-max. height
-
- …3000 mm
- Min.-max. width
-
- …1400 mm
- Behaviour between different climates
-
- Class 3(d),3(e)
- Opening type
-
- Side-hung
- Inward and outward
- Single and double-vent
- Type of design
-
- Single-vent
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- Door threshold
-
- Aluminium
- PVC-U
- Automatic door gasket
- Flat door threshold
- Vent option
-
- Flush-fitted
- All around
- Sill rail profile
- Adjustable sill
- Face-fitted
- Infill type
-
- Insert panel infill
- Door infill, leaf enclosing on one side
- Door infill, leaf-enclosing on two sides
- DIN direction
-
- DIN LH / RH
CAD DATA
-
Door outer frame for flush-fitted door leaf Door leaf 73/73, inward-opening
-
Door outer frame rebate profile for flush-fitted door leaf Door leaf 73/73, inward-opening
-
Door outer frame for flush-fitted door leaf Door leaf 100/100, inward-opening
-
Door outer frame for flush-fitted door leaf Door leaf 100/100, inward-opening
-
Door sidelight or toplight
TEST DOCUMENTS
- 1/1
| Type of document |
|
Doc. no. / Download | |||
| Classification report |
|
Chilt/P08126/03 (pdf, 2 MB) | |||
- 1/1
BROCHURES
-
Aluminium
Schüco ADS 65 HD
