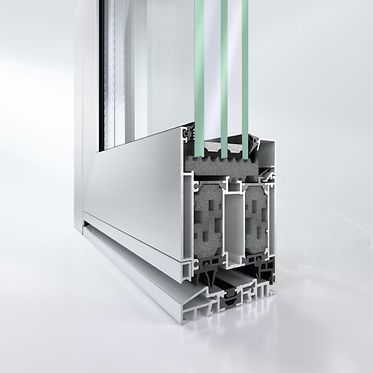

Fabrication benefits
- One barrel hinge for all applications: with clamping anchor technology as well as enhanced adjustment options for simple and time-saving installation
- The same construction principle across all basic depths and maximum use of identical parts ensure professional, reliable fabrication

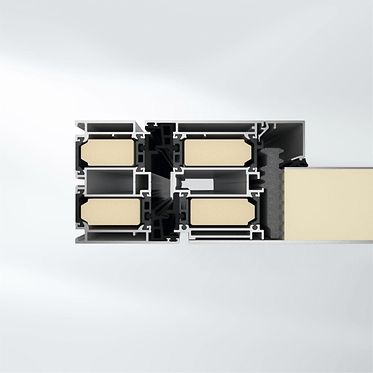

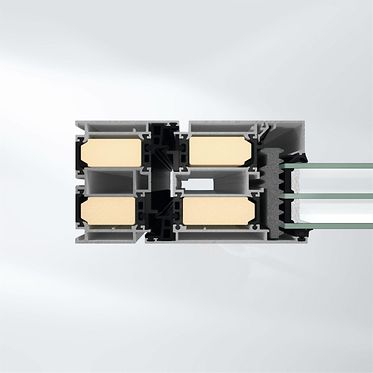

- Hybrid insulating bar: high stability in conjunction with a split insulating bar minimises the bimetallic effect
- Efficient fabrication and simplified installation, e.g. thanks to pre-fabricated gasket corners and threshold solutions which are optimised for fabrication
Technical information
System basic depth90 mm
Uf value of frame (≥)1 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness68 mm
Area of applicationResidential projects, Residential projects, Commercial projects
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C2 / B2
Burglar resistanceUp to RC2
Impact resistanceClass 1
Ud value of door (≥)0.94 W/(m²·K)
Max. vent weight200 kg
Min.-max. height…2500 mm
Min.-max. width…1250 mm
Min. face width170 mm
Min.-max. glass/panel thickness28…68 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionAll around, Sill rail profile, Adjustable sill, Flush-fitted
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, PVC-U, Automatic door gasket, Flat door threshold
Opening typeSide-hung, Inward and outward, Single and double-vent
DIN directionDIN LH / RH
Mechanical strengthClass 3
Proof of durabilityClass 7, Class 8
Max. sound reduction Rwp42 dB(A)
Certificatescradle2cradle SILVER
CE markingYes
Documentation
Fabrication manual 1-2D – Door Systems AD UP
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfbericht | Fähigkeit zur Freigabe | Anforderung erfüllt | EN 14351-1 | View onlineDownload (pdf, 9.6 MB) |
| Gutachterliche Stellungnahme | Bedienungskraft Luftdurchlässigkeit Windwiderstandsfähigkeit Schlagregendichtheit |
Klasse 2 Klasse 4 Klasse C2 Klasse 5A |
DIN EN 12217 DIN EN 12207 DIN EN 12210 DIN EN 12208 |
View onlineDownload (pdf, 483.2 KB) |
| Gutachterliche Stellungnahme | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit Klimaprüfung Bedienungskraft Dauergebrauchstauglichkeit Stoßfestigkeit Dauerlaufprüfung |
Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart Übertragung von SimplySmart |
View onlineDownload | |
| Gutachterliche Stellungnahme | Bedienungskraft Luftdurchlässigkeit Windwiderstandsfähigkeit Schlagregendichtheit |
Klasse 2 Klasse 3 Klasse C2 Klasse 4A |
DIN EN 12217 DIN EN 12207 DIN EN 12210 DIN EN 12208 |
View onlineDownload (pdf, 482.7 KB) |
| Kurzbericht | Einbruchhemmung | RC 2 / RC 2 N*) | DIN EN 1627 | View onlineDownload |
