Door System ADS 60

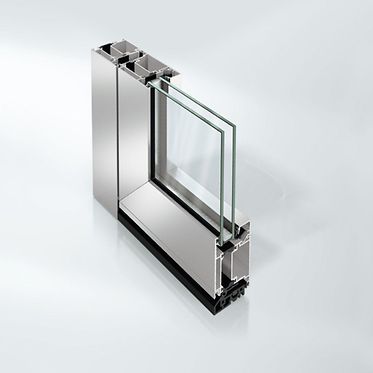

Schüco ADS 60, thermally insulated aluminium door system
With 60 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The door leaves must have a four-sided mitre-cut leaf profile.

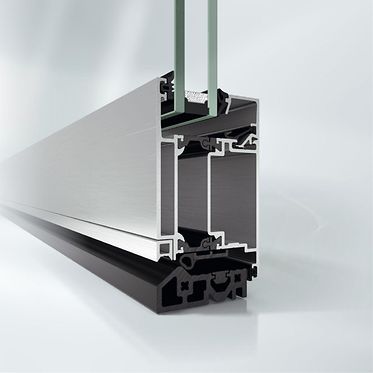

The door leaf profiles are fitted with thermal breaking split insulating bars.
The system must be fitted with square glazing beads.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 60 mm
Leaf frame (door), flush-fitted 60 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 69 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
