Fabrication benefits
- Multi-purpose groove: fast push-in fixing of the fittings with pre-installed locking cams
- Continuous leaf profile
- Easy to integrate in building security and automation systems
- Multiple possible designs: side-hung door, swing door, opposed opening door, all-glass door
- Same fabrication as Schüco fire and smoke protection systems
- Wide selection of hinges: surface-mounted hinges, barrel hinges and concealed hinges
- Possible to install surface-mounted and concealed door closers as well as side-hung door drives
Technical information
System basic depth65 mm
Max. height3220 mm
Max. width3180 mm
Max. glass/panel thickness39 mm
Area of applicationInternal use, Residential projects, Residential projects, Commercial projects
Burglar resistanceUp to RC2
Min.-max. height1750…3220 mm
Min.-max. width625…3180 mm
Max. clear opening dimension (w x h)2820 x 2988 mm
Min. clear opening dimension (w x h)460 x 1648 mm
Min. face width137 mm
Min.-max. glass/panel thickness…39 mm
Type of designDouble-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in glazing
Special applicationsAnti-finger-trap door, Opposed opening door, Swing door
Concealed fittings systemYes
DIN directionDIN LH / RH
Mechanical strengthClass 4
Proof of durability200,000 cycles in accordance with DIN EN 12400
Max. sound reduction Rwp44 dB(A)
CE markingYes
Specification texts

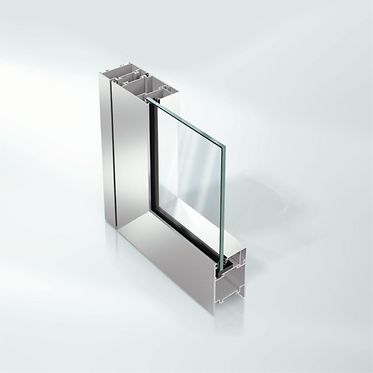

Schüco ADS 65.NI, non-insulated aluminium door and partition wall system
With 65 mm basic depth.
Design features:
The construction is flush-fitted on the outside and inside.
The system must be fitted with square glazing beads.
The door leaves must have a four-sided mitre-cut leaf profile.
The sill is sealed by a gasket that falls into place automatically when the door is closed.
Depending on requirements, a threshold profile and a gasket with lips can also be used.
Profile basic depths:
Outer frame, transom, mullion,
leaf frame and sill 65 mm
Profile face widths:
Outer frame, side / top 59 mm
Outer frame extension 34 mm
Mullion 84 mm
Transom 84 mm
Leaf frame (door) 98 mm
Continuous sill rail 98 mm
Sill 142 mm

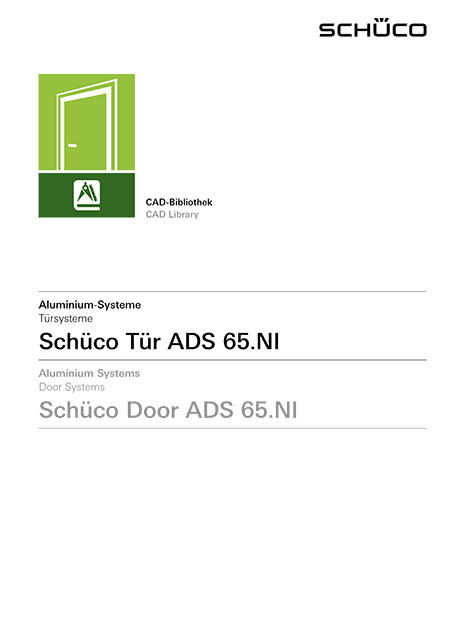

CAD data
