Door System Firestop T90/F90

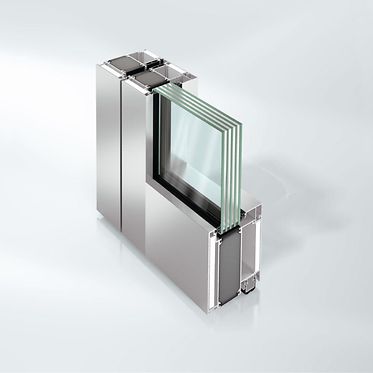

Schüco Firestop T 90 / F 90, thermally broken aluminium system for fire protection barriers, in accordance with EN 1634-1 / 1363-1 / DIN 4102 and EN 1634-3 / DIN 18095
With 105 mm basic depth.

Fire protection barrier T 90-1 door, approval Z-6.20-1853
Permissible dimensions, width (clear opening width) 648 mm to 1312 mm, height 1870 mm to 2493 mm.

Fire protection barrier T 90-2 door, approval Z-6.20-1853
Permissible dimensions, width (clear opening width) 1205 mm to 2646 mm, height 1870 mm to 2493 mm.

Firestop F90, approval Z-19.14-1605
Maximum permissible height of the fire-retardant glazing = 4500 mm.
Maximum permissible width of the fire-retardant glazing = unlimited
Maximum permissible pane dimensions in portrait and landscape format = 1400 x 2300 mm
Maximum permissible panel dimensions, 1250 x 2300 mm.

Firestop T-90-1 and Firestop T-90-2 doors as fire protection barriers can be installed as an inner component in F90 glazing in accordance with approval Z-19.14-1605.

Design features:

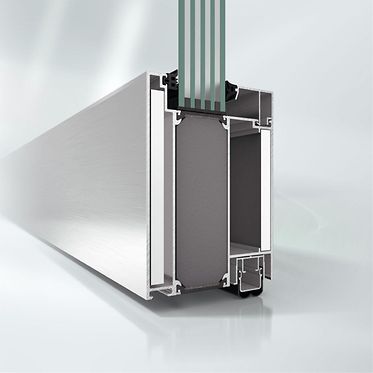

Fire boards are inserted in the profile chambers of the aluminium profiles (tested pre-rolled).
Sealing strips – foam-filled in the event of fire – are used in the rebate area of the profiles
Only fire-resistant glazing and/or infills tested for the system may be used.
Only tested fittings belonging to the system may be used.
The units must be installed in accordance with the guidelines of the general building approval.
The fire-resistant doors must be smoke-proof in accordance with DIN 18095.

Where the construction is used as an outer component (only fire-resistant glazing), a corresponding rebate base ventilation and the required additional measures must be made in accordance with the approval.
The attachments to building structure must be made in accordance with requirements in the outside area.

Profile basic depths:
Outer frame, transom, mullion
door leaf and sill 105 mm
Mullion (reinforced) 180 mm

Profile face widths:
Outer frame 66 mm
Mullion (unit coupling) 137 mm
Mullion, transom 88 mm
Leaf frame (outward-opening door) 97 mm
Leaf frame (inward-opening door) 75 mm
Sill 150 mm
