Economy 50 Door System

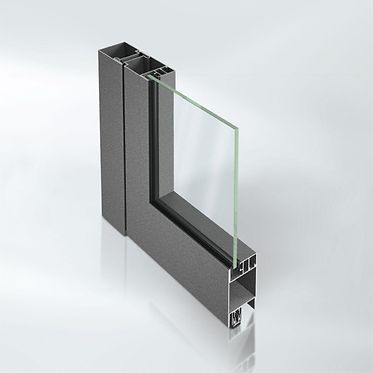

Filigree steel profile system for interior door constructions

The non-insulated Jansen Economy® 50 steel profile system with a wall thickness of 1.5 mm is particularly suitable for filigree and flush single and double-leaf door constructions and fixed glazing. The shadow gap running around the inside and outside gives the door constructions an elegant appearance.

The appearance of the flush Jansen Economy® 50 doors is identical to the thermally insulated Janisol® door series and the smoke and fire protection door series. This means that the same appearance can be achieved even with different planning requirements.

หมวดหมู่:

Fabrication benefits

  • simple profile geometry for easy joining
  • extensive range of rebate bolted hinges
  • variable profile extensions
  • Completely CE-approved system according to DIN EN 14351-1
  • flexible application possibilities due to system compatibility

Technical information

System basic depth50 mm
Uf value of frame (≥)5.1 W/(m²·K)
Max. height2500 mm
Max. width2440 mm
Max. glass/panel thickness27 mm
Area of applicationInternal use, Residential projects, Residential projects, Commercial projects, Doors
Surface finishesRAL, Powder, Paint
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C5
Ud value of door (≥)2.6 W/(m²·K)
Max. vent weight230 kg
Min.-max. height1915…2500 mm
Min.-max. width530…2440 mm
Max. clear opening dimension (w x h)2400 x 2500 mm
Min. clear opening dimension (w x h)490 x 1900 mm
Min. face width105 mm
Min.-max. glass/panel thickness5…27 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Thick door leaf50 mm
Type of designSingle-vent, Double-vent, Single-vent with toplight and side section, Double-vent with toplight and side section
Vent optionFlush-fitted, Insert panel infill, Swing door, Anti-finger-trap door, Finger-trap protection
Infill typeInsert panel infill, Door infill, leaf-enclosing on two sides
Door thresholdAutomatic door gasket, Flat door threshold, Easy-access door threshold
Special applicationsAnti-finger-trap door, Sheet metal clad door, Swing door
Fitting materialSteel, Stainless steel
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
With panic functionYes
Finger-trap protectionYes
Opening typeInward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Mechanical strengthClass 4
Proof of durability200,000 cycles in accordance with DIN EN 12400
Max. sound reduction Rwp44 dB(A)
Top / bottom door closersYes
Door closer typeTop closers, Floor springs
CertificatesEPD
CE markingYes

Documentation

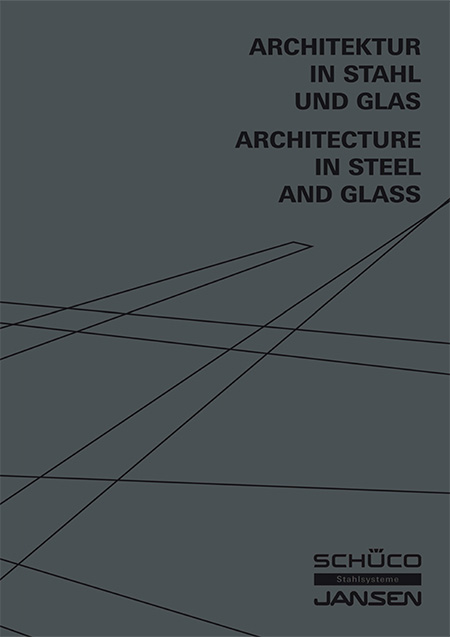

Architecture in steel and glass

View onlineDownload

Specification texts

Economy 50 door
Bullet-resistant M3SA test certificate no. DSM 97334
Steel profile system for doors and partition walls with 50 mm basic depth, for indoor components and components without thermal insulation requirements.
In the case of door units with bullet-resistant requirements, the fabrication instructions from the system provider must be observed.

Design features:
All corner and T-joints are securely welded together.
Glass and/or infills of 4 mm to 35 mm can be used.
Door leaves flush-fitted inside and outside with a 5 mm shadow gap on all sides.
Double, continuous rebate weatherstrip on three sides. Transition to automatic floor seal without using special seals.
A glazing bead is used on one side of the glazing.
Glazing bead: ???
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.

Profile depths:
Outer frame, mullion, transom 50 mm
Leaf frame (door) 50 mm

Profile face widths:
Outer frame (door) 88 mm
Z trim (door) 43 mm
Outer frame (glazing) 90 mm
Sill rail profile (glazing) 90 mm
Mullion 80 mm
Transom 80 mm
Leaf frame (door) 63 mm
Sill rail profile (door) 90 mm

download

CAD data

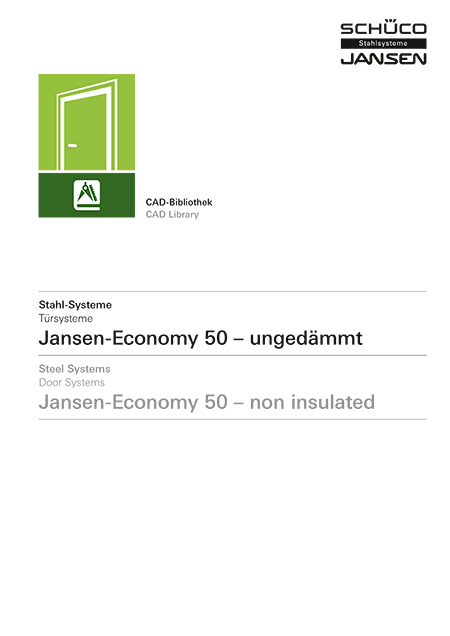

Jansen-Economy 50 doors – non insulated

View onlineDownload

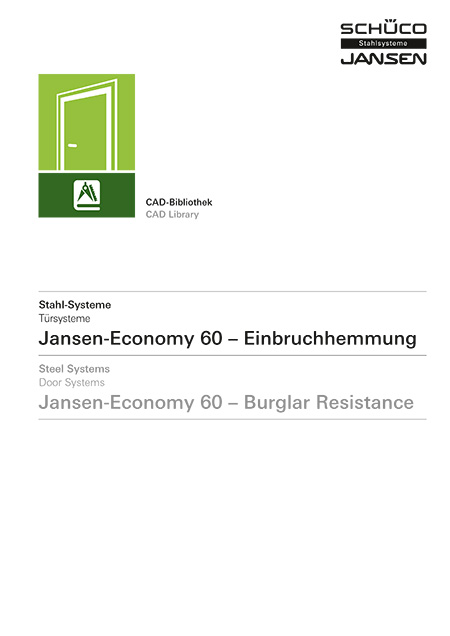

Jansen-Economy 60 doors – Burglar resistance

View onlineDownload

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Beschuß Widerstandsklasse FB4 NS View onlineDownload (pdf, 85.5 KB)
Prüfzeugnis Beschuß Widerstandsklasse FB4 NS View onlineDownload (pdf, 294.9 KB)
Prüfbericht Fähigkeit zur Freigabe Anforderung erfüllt Anforderung erfüllt View onlineDownload (pdf, 8.0 MB)
Prüfzeugnis Beschuß FB6 NS FB6 NS View onlineDownload (pdf, 1.3 MB)
Prüfzeugnis Beschuß FB5 S FB5 S View onlineDownload (pdf, 1.6 MB)
Prüfzeugnis Beschuß FB6 NS FB6 NS View onlineDownload (pdf, 947.2 KB)
Gutachterliche Stellungnahme Windwiderstandsfähigkeit
Schlagregendichtheit
Luftdurchlässigkeit		 Class C5 (EN 12210)
Class 9A (EN 12208)
Class 4 (EN 12207)		 Class C5 (EN 12210)
Class 9A (EN 12208)
Class 4 (EN 12207)		 View onlineDownload
Gutachterliche Stellungnahme Schallmessung Rw=32…44dB Rw=32…44dB View onlineDownload (pdf, 565.6 KB)
Gutachterliche Stellungnahme Dauergebrauchstauglichkeit
Dauergebrauchstauglichkeit
Bedienungskraft
Tragfähigkeit Sicherheitsvorr.		 Class 4 (EN 1192)
Class 3 (EN 1192)
Class 2 (EN 12217)
Threshold value achieved		 Class 4 (EN 1192)
Class 3 (EN 1192)
Class 2 (EN 12217)
Threshold value achieved		 View onlineDownload (pdf, 1.1 MB)
Gutachterliche Stellungnahme Windwiderstandsfähigkeit
Schlagregendichtheit
Luftdurchlässigkeit
Schlagregendichtheit		 Klasse C1..C5 (EN 12210)
Klasse 0..5A (EN 12208)
Klasse 0..4 (EN 12207)
Klasse 0..4 (EN 12207)		 Klasse C1..C5 (EN 12210)
Klasse 0..5A (EN 12208)
Klasse 0..4 (EN 12207)
Klasse 0..4 (EN 12207)		 View onlineDownload (pdf, 450.4 KB)

Brochures

Systems full of individual possibilities

View onlineDownload
