FABRICATION BENEFITS
- System tools for simple, secure installation, even of large insulating glass panes
- Reduced system complexity: Extensive use of identical parts for system components in the entire Schüco FWS range, based on the Schüco Façade FWS 50/FWS 60
- Prefabricated system components: Increased fabrication convenience, minimal sources of error and increased installation speed
TECHNICAL INFORMATION
- Min. face width
-
- 35 mm
- Uf value of frame (≥)
-
- 1.4 W/(m²·K)
- Max. glass/panel thickness
-
- 50 mm
- Max. sound reduction Rwp
-
- 51 dB(A)
- Air permeability
-
- AE
- Watertightness
-
- RE 1200
- Burglar resistance
-
- Up to RC3
- Wind load resistance
-
- 2.0/3.0 [kN/m²]
- CE marking
-
- Ja
- Passive house class
-
- phA
- Surface finishes
-
- Powder
- Anodised
- Paint
- Min.-max. glass/panel thickness
-
- 4…50 mm
- Certificates
-
- Passive house certificate
- Suitable for safety barrier loading
-
- Ja
- Impact resistance
-
- I5/E5
- Min. system basic depth
-
- 65 mm
- Min.-max. system basic depth
-
- 65…150 mm
- SYSTEM / MATERIAL
-
- Aluminium
- FAÇADE TYPE
-
- Mullion-Transom-Façade
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Appearance of a cover cap
- Design Line
- Max. weight
-
- 400 kg
- Blast resistance
-
- No
- CWCT certified
-
- Ja
- Max. system basic depth
-
- 150 mm
- Min.-max. face width
-
- 35 mm
- Min. glass/panel thickness
-
- 4 mm
- Min. basic depth of mullion
-
- 125 mm
- Max. basic depth of mullion
-
- 125 mm
- Min.-max. basic depth of mullion
-
- 125…125 mm
- Face width of pressure plate / cover cap profile
-
- 35 mm
- Face width, outside
-
- 35 mm
- Face width, inside
-
- 35 mm
- Face width of mullion
-
- 35 mm
- Face width of frame
-
- 35 mm
- Face width of transom
-
- 35 mm
- Building authority approval
-
- Ja
- European Technical Assessment
-
- Ja
- Standards
-
- EN ISO 10077
- DIN EN 13830
- General building authority approval
- DIN EN 1627
- Installation angle
-
- 85-105°
- Spandrel safety barriers
-
- Surface-mounted
- Façade-mounted
- Drainage
-
- Ja
- Drainage levels
-
- 3
- Passive house compliant
-
- Ja
- Recyclable
-
- Ja
- Sun shading attachment
-
- Ja
- Tested all-glass corner
-
- Ja
- Polygon façade angle
-
- 90°
- Max. unit weight
-
- 400 kg
- Max. glass/infill weight
-
- 400 kg
- VF_wind load resistance
-
- PN1200-PE1800
SPECIFICATION TEXTS/PREVIEW SPECIFICATION

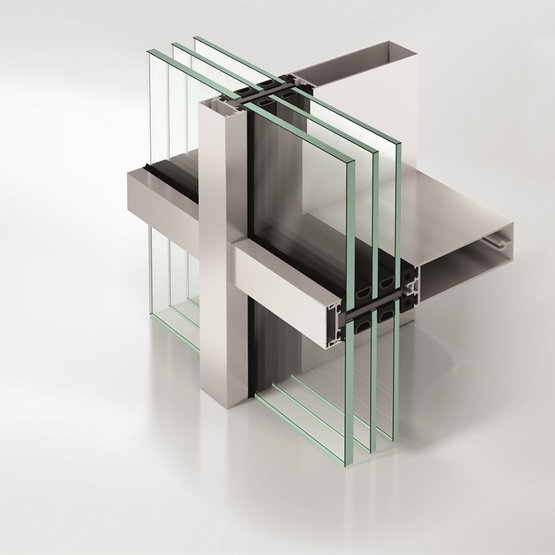

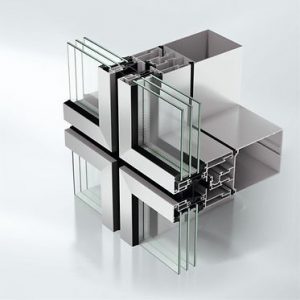

Schüco FWS 35 PD.HI, highly thermally insulated self-supporting aluminium façade system
As a mullion/transom construction with an internal and external face width of 35 mm. Construction for vertical, straight façades.
Design features:
The inner load-bearing profile and the outer pre-fabricated pressure plate are joined by means of a fixing bracket assembly with a hammer-head bolt.
Load-bearing structure:
The load-bearing structure of the façade construction consists of rectangular multi-chamber hollow profiles.
The load-bearing profiles are on the room side.
All profile edges are rounded.
The transom profiles are notched and overlap the mullions where they intersect, so that any moisture is reliably drained away.
On multi-storey façades, all horizontal joints must be constructed using the insert profiles and joint tolerance seals belonging to the system.
Appropriate system-based aluminium insert profiles and half profiles, as well as expansion joint seals, must be used for vertical expansion and assembly joints.
For fields with storey-height, large-scale glazing, a special HD system transom must be used.
The special profile geometry allows galvanised steel rectangular profiles to be inserted to reduce deformation.
The profile must be arranged so that the required load-bearing geometry is located in the area of the ceilings.
The profile can also be used as a spandrel transom to form opaque spandrel infills created with the system that are flush-fitted on the inside.
Clip-in two-part cruciform glazing supports must also be inserted.
Glazing / insert units:

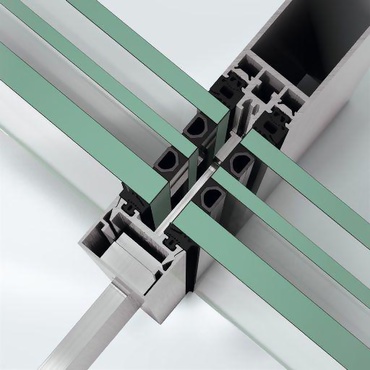

All glazing, even in the insert units, lies in the same plane. The glazing gaskets made from weather-resistant, black EPDM on the room side are of different depths in the mullions and transoms (6 mm offset).
Pre-fabricated pressure plates with gaskets made from weather-resistant, black EPDM, with a height of 5 mm, are positioned on the outside. Stainless steel sealing plates with microcellular rubber supports must be used where mullions and transoms join.
Ventilation:
Rebate base ventilation and vapour pressure equalisation take place at all four corners of each module field into the mullion rebate.
Profile face widths:
Mullion, assembly mullion, transom 35 mm
Profile basic depths:
Mullion 105 mm
Transom 110 mm
Cover cap (mullion) 20 mm
Cover cap (transom) 15 mm
The profile basic depths must be offered in accordance with the structural requirements and the plan specifications. However, note that a uniform mullion depth is required for all units.
CAD DATA
-
Sill attachment
-
Sill attachment
