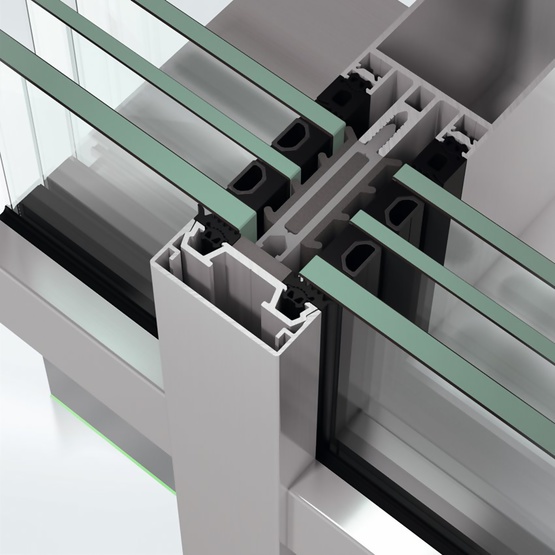

FABRICATION BENEFITS
- Prefabricated system components: Increased fabrication convenience, minimal sources of error and increased installation speed

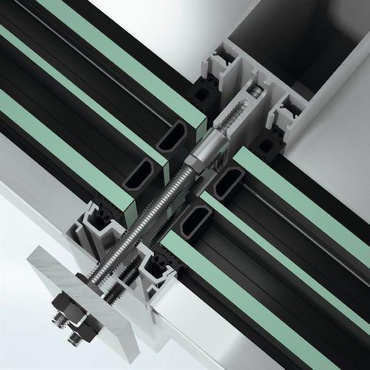

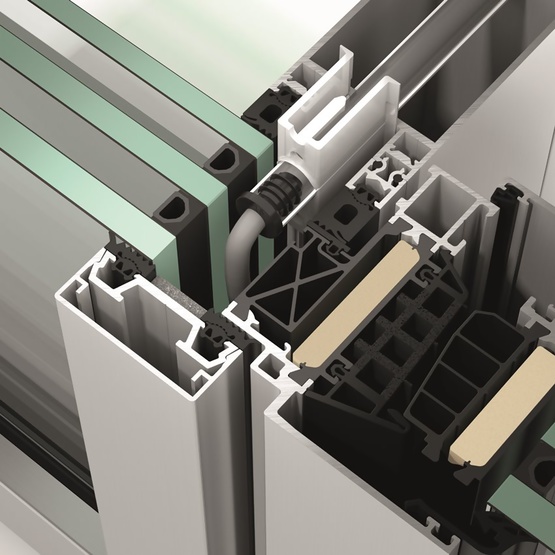

- System components for wiring and cable feeds: Simple and secure integration of mechatronic components such as automatic opening units or sun shading systems up to 230 V AC
- Continuous attachment to building structure for optimum foil guide: Clip-on function for simple profile installation, including colour coding for correct positioning of the foil for attachment to the building structure
TECHNICAL INFORMATION
- Min. face width
-
- 50 mm
- Uf value of frame (≥)
-
- 1.5 W/(m²·K)
- Max. glass/panel thickness
-
- 62 mm
- Max. sound reduction Rwp
-
- 48 dB(A)
- Air permeability
-
- AE
- Watertightness
-
- RE 1200
- Burglar resistance
-
- Up to RC3
- Wind load resistance
-
- 2.0/3.0 [kN/m²]
- CE marking
-
- Ja
- Passive house class
-
- phA
- Surface finishes
-
- Powder
- Anodised
- Paint
- Min.-max. glass/panel thickness
-
- 4…62 mm
- Suitable for safety barrier loading
-
- Ja
- Impact resistance
-
- I5/E5
- Integrated sun shading
-
- Ja
- Bullet resistance
-
- Up to FB4
- Min. system basic depth
-
- 6 mm
- Min.-max. system basic depth
-
- 6…255 mm
- SYSTEM / MATERIAL
-
- Aluminium
- FAÇADE TYPE
-
- Mullion-Transom-Façade
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Appearance of a cover cap
- Semi-structural glazing
- standard
- Max. weight
-
- 1080 kg
- Fire protection
-
- EI30
- Blast resistance
-
- No
- AAMA certified
-
- Yes
- CWCT certified
-
- Ja
- Max. system basic depth
-
- 255 mm
- Min.-max. face width
-
- 50 mm
- Min. glass/panel thickness
-
- 4 mm
- Min. basic depth of mullion
-
- 50 mm
- Max. basic depth of mullion
-
- 250 mm
- Min.-max. basic depth of mullion
-
- 50…250 mm
- Face width of pressure plate / cover cap profile
-
- 50 mm
- Face width, outside
-
- 50 mm
- Face width, inside
-
- 50 mm
- Face width of mullion
-
- 50 mm
- Face width of frame
-
- 50 mm
- Face width of transom
-
- 50 mm
- Building authority approval
-
- Ja
- European Technical Assessment
-
- Ja
- Standards
-
- EN ISO 10077
- DIN EN 13830
- General building authority approval
- DIN EN 1627
- Installation angle
-
- 1-105°
- Spandrel safety barriers
-
- Surface-mounted
- Façade-mounted
- Integrated
- Drainage
-
- Ja
- Drainage levels
-
- 3
- Passive house compliant
-
- Ja
- Earthquake protection
-
- Ja
- Recyclable
-
- Ja
- DIN EN 62561 lightning protection
-
- Ja
- Profile-integrated spandrel safety barrier
-
- Ja
- Sun shading attachment
-
- Ja
- Skylight construction
-
- Ja
- Polygon façade angle
-
- 45°
- Skylight construction, min. vert. incline
-
- 2°
- Skylight construction, max. vert. incline
-
- 90°
- Skylight construction, min.-max. vert. incline
-
- 2…90°
- Max. unit weight
-
- 1080 kg
- Max. glass/infill weight
-
- 1080 kg
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||
| Test report |
|
VT15-038.2P_en (pdf, 1 MB) | |||
| Test report |
|
VT17-072.1P_en (pdf, 2 MB) | |||
| Technical approval |
|
ETA-18/0240_en (pdf, 2 MB) | |||
