Façade FWS 60

New system solution integrated in the profile for spandrel safety barriers with a high degree of design freedom and the best thermal insulation properties

Maximum flexibility

The system-optimised Schüco Façade FWS 50 / FWS 60 offers a high degree of flexibility and attractive design options for façades and skylight areas – including optimised fabrication and installation processes. A further benefit is that the façade guarantees the best thermal insulation values as a passive house-certified SI system.

Feature spandrel safety barriers

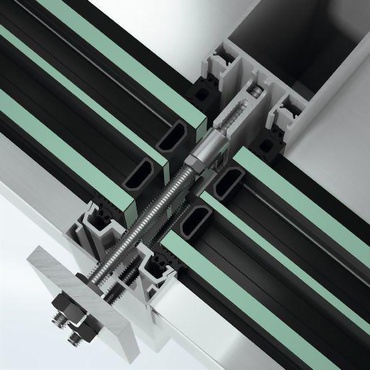

The new, transparent system solution integrated in the profile for spandrel safety barriers blends in seamlessly and elegantly into the external façade appearance. The required safety barrier loading for floor-to-ceiling opening units and low spandrel heights can be implemented with consistent profile face widths and an unbroken profile.

Additional system modules also facilitate the simple and secure integration of electrical components.

Award-winning system sustainability

With the expansion of the façade range to include the Schüco FWS 50.SI system, Schüco is once again meeting its ecological requirement for sustainable products. The system has been awarded the Silver “Cradle-to-Cradle Certified™” sustainability label by the independent C2CPII institute in cooperation with EPEA in Hamburg for its recycling properties and minimum toxin content.

หมวดหมู่:

FABRICATION BENEFITS

  • Prefabricated system components: Increased fabrication convenience, minimal sources of error and increased installation speed
  • System components for wiring and cable feeds: Simple and secure integration of mechatronic components such as automatic opening units or sun shading systems up to 230 V AC
  • Continuous attachment to building structure for optimum foil guide: Clip-on function for simple profile installation, including colour coding for correct positioning of the foil for attachment to the building structure

TECHNICAL INFORMATION

Min. face width
  • 60 mm
Uf value of frame (≥)
  • 1.3 W/(m²·K)
Max. glass/panel thickness
  • 62 mm
Max. sound reduction Rwp
  • 46 dB(A)
Air permeability
  • AE
Watertightness
  • RE 1200
Burglar resistance
  • Up to RC3
Wind load resistance
  • 2.0/3.0 [kN/m²]
CE marking
  • Ja
Surface finishes
  • Powder
  • Anodised
  • Paint
Min.-max. glass/panel thickness
  • 4…62 mm
Certificates
  • Passive house certificate
Suitable for safety barrier loading
  • Ja
Impact resistance
  • I5/E5
Integrated sun shading
  • Ja
Bullet resistance
  • Up to FB4
Min. system basic depth
  • 6 mm
Min.-max. system basic depth
  • 6…255 mm
SYSTEM / MATERIAL
  • Aluminium
FAÇADE TYPE
  • Mullion-Transom-Façade
ENERGY
  • Thermally insulated
DESIGN
  • Appearance of a cover cap
  • standard
Max. weight
  • 1080 kg
AAMA certified
  • Yes
CWCT certified
  • Ja
Max. system basic depth
  • 255 mm
Min.-max. face width
  • 60 mm
Min. glass/panel thickness
  • 4 mm
Min. basic depth of mullion
  • 50 mm
Max. basic depth of mullion
  • 250 mm
Min.-max. basic depth of mullion
  • 50…250 mm
Face width of pressure plate / cover cap profile
  • 60 mm
Face width, outside
  • 60 mm
Face width, inside
  • 60 mm
Face width of mullion
  • 60 mm
Face width of frame
  • 60 mm
Face width of transom
  • 60 mm
Building authority approval
  • Ja
European Technical Assessment
  • Ja
Standards
  • DIN EN 13830
  • General building authority approval
  • DIN EN 1627
Installation angle
  • 2-105°
Spandrel safety barriers
  • Integrated
Drainage
  • Ja
Drainage levels
  • 3
Passive house compliant
  • Ja
Recyclable
  • Ja
DIN EN 62561 lightning protection
  • Ja
Profile-integrated spandrel safety barrier
  • Ja
Sun shading attachment
  • Ja
Skylight construction
  • Ja
Polygon façade angle
  • 35°
Skylight construction, min. vert. incline
Skylight construction, max. vert. incline
  • 90°
Skylight construction, min.-max. vert. incline
  • 2…90°
Max. unit weight
  • 1080 kg
Max. glass/infill weight
  • 1080 kg
