Fabrication benefits
- Sealing components without use of sealant in the vertical façade for efficient and secure installation
- Patented screw guide: different infill thicknesses can be inserted reliably and efficiently
- Roof area with butyl tape sealing and integrated screw guide for maximum installation reliability

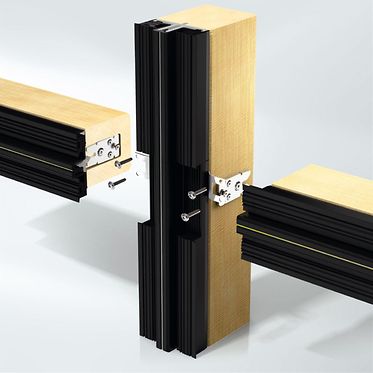

- Special basic profiles with positioning guide for timber fabricators
Technical information

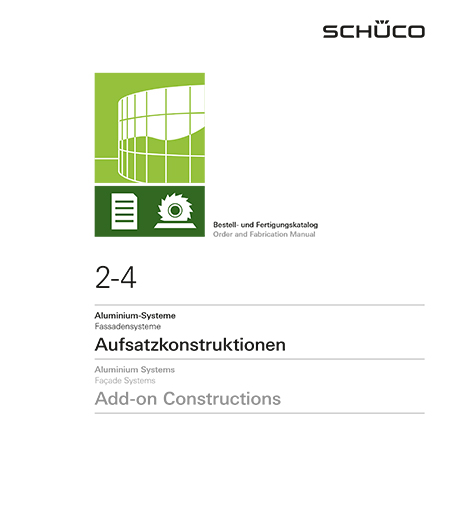

Documentation

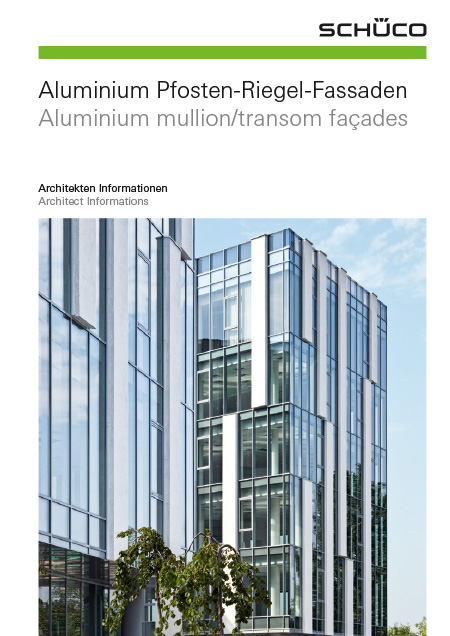

Aluminium mullion/transom façades
Mechanical security with Schüco aluminium systems
[B] System overview Schüco AOC
[C] Schüco AOC 50
[I] Timber Substructures Vertical façade
[L] Special points
Specification texts

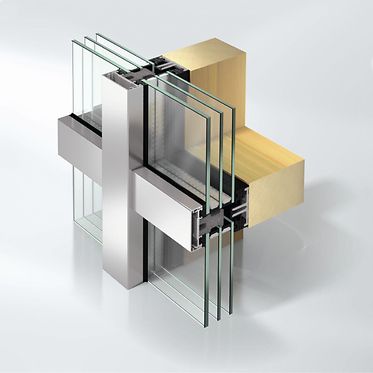

Schüco AOC 50+ TI, thermally insulated aluminium add-on construction on a timber load-bearing structure (gasket system)
As a mullion/transom construction for multi-storey façades with a 50 mm external face width.
Design features:
The construction must be sealed from outside using aluminium pressure plates to suit the infill thicknesses.
Load-bearing structure:
Selection
The load-bearing structure of the façade construction must be fabricated from suitable types of wood.
Or
The load-bearing structure of the façade construction is to be fabricated from suitable types of wood supplied by the customer.
End
Wood quality, design and surface treatment are described separately. The necessary cross sections must be calculated according to DIN 1052. Furthermore, DIN EN 942 (Wood in joinery work), DIN 1055 (Anticipated loads for buildings) and “Technical regulations for the use of glazing with linear supports, DIBt, September 1998 edition” must be taken into account in the design of the construction. The load-bearing wood construction is on the inside. In faceted façades, the width of the wood profile must not exceed 60 mm if insert units are planned to be installed.

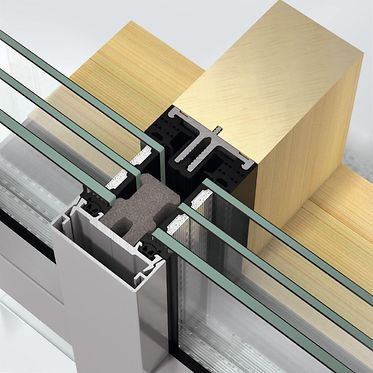

The glazing system consists of aluminium cover caps and/or pressure plates (clamping connection). The joint between the pressure plates and the load-bearing structure must be designed in accordance with the conditions of the existing general building authority approval. The glazing system is attached to the load-bearing structure using an aluminium basic profile by means of screw connections. The aluminium profiles have alternating holes 125 mm apart for this purpose. A large-volume EPDM gasket with integral ventilation channels, structural height 15 mm, forms the basis for the installation of the glazing and the ventilation of the construction. The joints of the gaskets to be laid horizontally and vertically must overlap and be sealed. The corresponding alternating notches must be made in accordance with the system manufacturer’s recommendations.
Glazing / insert units:
All glazing, even in the insert units, lies in the same plane.

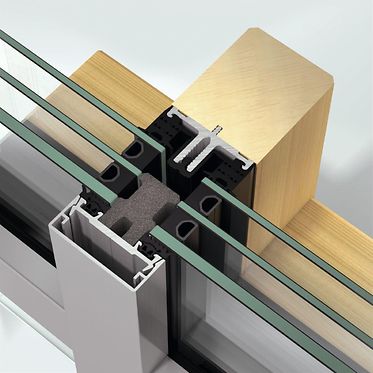

The glazing gaskets made from weather-resistant, black EPDM on the room side are of different depths in the mullions and transoms (6 mm offset).
Two individual gaskets made from weather-resistant, black EPDM, with a height of 5 mm, are positioned on the outside. Moulded gasket intersections made from EPDM must be used where mullions and transoms join.
Ventilation:
Rebate base ventilation and vapour pressure equalisation are achieved at all four corners of each module field into the mullion rebate.
For field drainage and ventilation, appropriate openings must be made in the aluminium pressure plates, cover caps and gaskets.
Dimensions and design of the exterior cover caps:
Cover cap (mullion) U-shaped 50 x 30 mm
Cover cap (transom) rectangular 50 x 8.5 mm
CAD data
Test documents
Document type | Test type | Result | Classification | Document no. / Download |
---|---|---|---|---|
Prüfzeugnis | Luftdurchlässigkeit Widerstand gegen Windlast Schlagregendichtheit |
AE 1350 + / – 2000 Pa RE 1350 |
View onlineDownload (pdf, 72.5 KB) | |
Prüfbericht | Schallmessung | View onlineDownload (pdf, 2.9 MB) | ||
Gutachterliche Stellungnahme | Luftdurchlässigkeit Widerstand gegen Windlast Schlagregendichtheit |
AE 1350 + / – 2000 Pa RE 1350 |
View onlineDownload (pdf, 431.0 KB) | |
Gutachterliche Stellungnahme | Luftdurchlässigkeit Schlagregendichtheit Widerstand gegen Windlast Pendelschlagversuch Schallmessung Einbruchhemmung |
View onlineDownload (pdf, 227.4 KB) | ||
Kurzbericht | Einbruchhemmung | Widerstandsklasse RC2 + RC3 | View onlineDownload (pdf, 95.8 KB) | |
Produktpass | Schlagregendichtheit Luftdurchlässigkeit Widerstand gegen Windlast Pendelschlagversuch Schallmessung Einbruchhemmung Schallmessung |
RE 1350 AE 1350 +/- 3000 Pa I5/E5 Rw= 52 (-1;-3) dB RC3 Rw= 51 (-0;-2) dB |
View onlineDownload (pdf, 87.6 KB) | |
Produktpass | Schlagregendichtheit Luftdurchlässigkeit Widerstand gegen Windlast Pendelschlagversuch Schallmessung Einbruchhemmung Schallmessung |
RE 1350 AE 1350 +/- 3000 Pa I5/E5 Rw= 52 (-1;-3) dB RC3 Rw= 51 (-0;-2) dB |
View onlineDownload (pdf, 83.1 KB) | |
Systemprüfzeugnis | Passivhaustauglichkeit | Effizienzklasse phA | View onlineDownload (pdf, 1.6 MB) | |
Systemprüfzeugnis | Passivhaustauglichkeit | Effizienzklasse phA | Glasdach | View onlineDownload (pdf, 898.1 KB) |
Systemprüfzeugnis | Passivhaustauglichkeit | Effizienzklasse phA | View onlineDownload (pdf, 1.6 MB) |
