Façade System AOC 60 ST

Add-on construction on steel for façades and skylights with outstanding performance characteristics

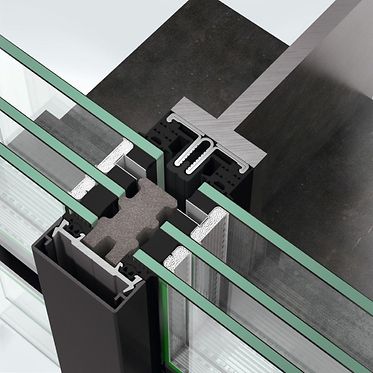

With the Schüco AOC 60 ST (Steel) façade system, skylight constructions and large vertical façades can easily be produced in a 60 mm system width on steel substructures with impressive design and technical quality.

Patented system components enable simple and reliable designs, including load transfer and screw guidance, even with large pane dimensions and triple glazing.

In the roof area, the innovative sealing system ensures maximum thermal insulation thanks to an integrated screw guide.

The add-on construction on steel combines energy-efficient, aesthetically pleasing construction with efficient fabrication and installation.

หมวดหมู่:

Technical information

Uf value of frame (≥)1.16 W/(m²·K)
Min. face width60 mm
Max. glass/panel thickness64 mm
Max. weight1500 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
Max. sound reduction Rwp52 dB(A)
WatertightnessRE 1350
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight1500 kg
Min.-max. face width60 mm
Face width of pressure plate / cover cap profile60 mm
Face width, outside60 mm
Face width, inside60 mm
Face width of mullion60 mm
Face width of frame60 mm
Face width of transom60 mm
Min. glass/panel thickness8 mm
Min.-max. glass/panel thickness8…64 mm
Max. glass/infill weight1500 kg
Installation angle2-105°
Polygon façade angle20°
Skylight construction, min. vert. incline2°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline2…105°
Skylight constructionYes
DrainageYes
Drainage levels3
Wind load resistance2.0/3.0 [kN/m²]
Sun shading attachmentYes
Spandrel safety barriersSurface-mounted, Façade-mounted
CertificatesPassive house certificate
CE markingYes
Passive house compliantYes
RecyclableYes
StandardsDIN EN 1627, DIN EN 13830, General building authority approval
Building authority approvalYes

Documentation

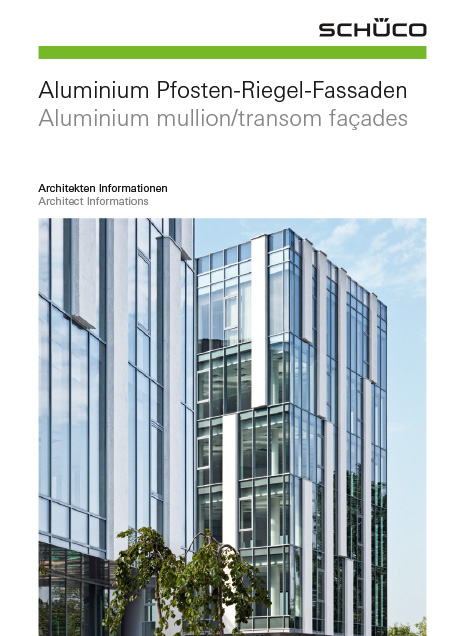

Aluminium mullion/transom façades
