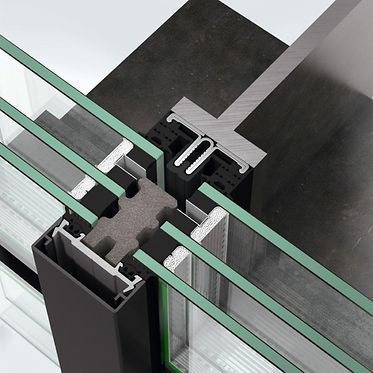

Fabrication benefits
- Sealing components without use of sealant in the vertical façade for efficient and secure installation
- Use of building authority-approved, powder-actuated fastener technology on steel substructures: minimised fabrication times compared to welding
- Patented screw guide: different infill thicknesses can be inserted reliably and efficiently
Technical information
Uf value of frame (≥)1.09 W/(m²·K)
Min. face width60 mm
Max. glass/panel thickness64 mm
Max. weight1500 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
Max. sound reduction Rwp52 dB(A)
WatertightnessRE 1350
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight1500 kg
Min.-max. face width60 mm
Face width of pressure plate / cover cap profile60 mm
Face width, outside60 mm
Face width, inside60 mm
Face width of mullion60 mm
Face width of frame60 mm
Face width of transom60 mm
Min. glass/panel thickness26 mm
Min.-max. glass/panel thickness26…64 mm
Max. glass/infill weight1500 kg
Installation angle2-105°
Polygon façade angle20°
Skylight construction, min. vert. incline2°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline2…105°
Skylight constructionYes
DrainageYes
Drainage levels3
Wind load resistance2.0/3.0 [kN/m²]
Sun shading attachmentYes
Spandrel safety barriersSurface-mounted, Façade-mounted
CertificatesPassive house certificate
CE markingYes
Passive house compliantYes
RecyclableYes
StandardsDIN EN 1627, DIN EN 13830, General building authority approval
Building authority approvalYes
Documentation
[B] System overview Schüco AOC

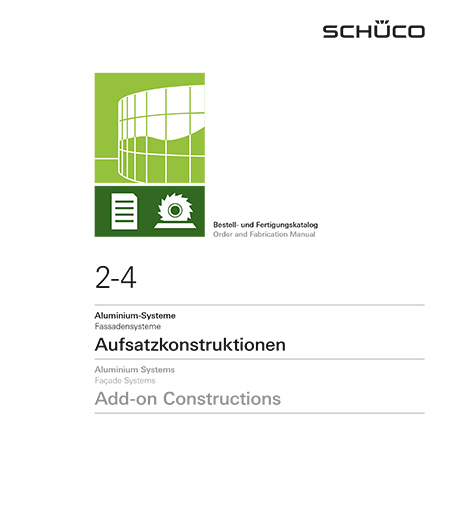

[D] Schüco AOC 60
[G] Steel Substructures Vertical façade
[L] Special points

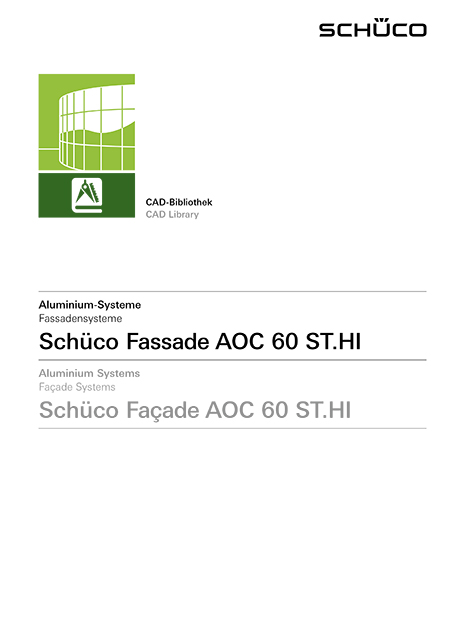

CAD data
