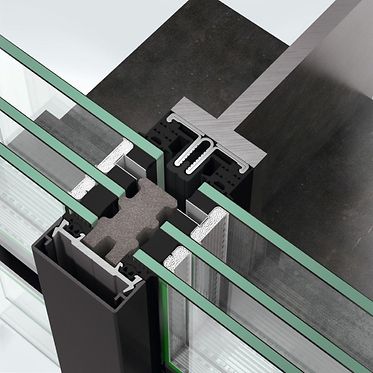

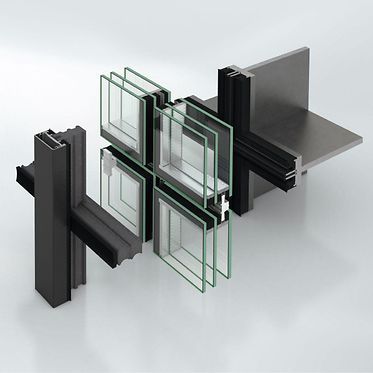

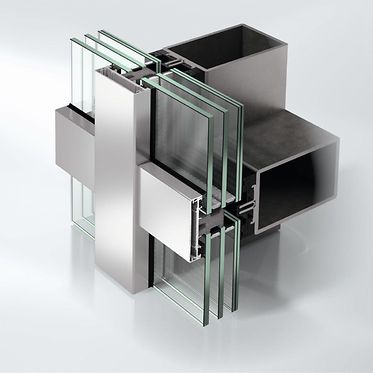

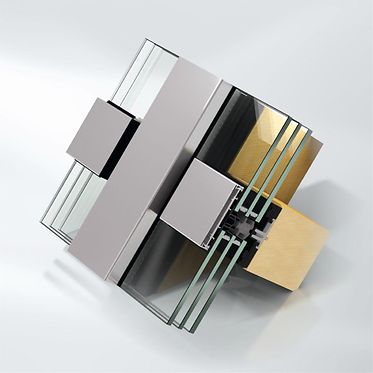

Fabrication benefits
- Sealing components without use of sealant in the vertical façade for efficient and secure installation
- Use of building authority-approved, powder-actuated fastener technology on steel substructures: minimised fabrication times compared to welding
- Patented screw guide: different infill thicknesses can be inserted reliably and efficiently
- Roof area with butyl tape sealing and integrated screw guide for maximum installation reliability
Technical information
Uf value of frame (≥)1.53 W/(m²·K)
Min. face width75 mm
Max. glass/panel thickness64 mm
Max. weight1500 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
WatertightnessRE 1200
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight1500 kg
Min.-max. face width75 mm
Face width of pressure plate / cover cap profile75 mm
Face width, outside75 mm
Face width, inside75 mm
Face width of mullion75 mm
Face width of frame75 mm
Face width of transom75 mm
Min. glass/panel thickness8 mm
Min.-max. glass/panel thickness8…64 mm
Max. glass/infill weight1500 kg
Installation angle90°
Skylight construction, min. vert. incline2°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline2…105°
Skylight constructionYes
DrainageYes
Drainage levels2
Wind load resistance2.0/3.0 [kN/m²]
Spandrel safety barriersSurface-mounted, Façade-mounted
CertificatesPassive house certificate
CE markingYes
Passive house compliantYes
RecyclableYes
StandardsDIN EN 13830, General building authority approval
Building authority approvalYes
Documentation

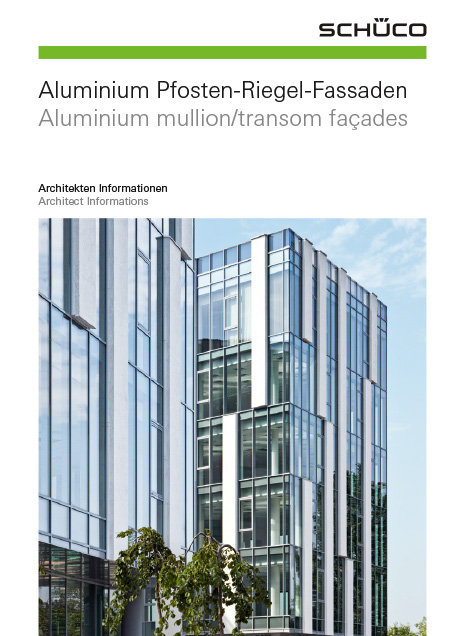

Aluminium mullion/transom façades
[B] System overview Schüco AOC
[E] Schüco AOC 75
[H] Steel Substructures Sloped roof area
[L] Special points

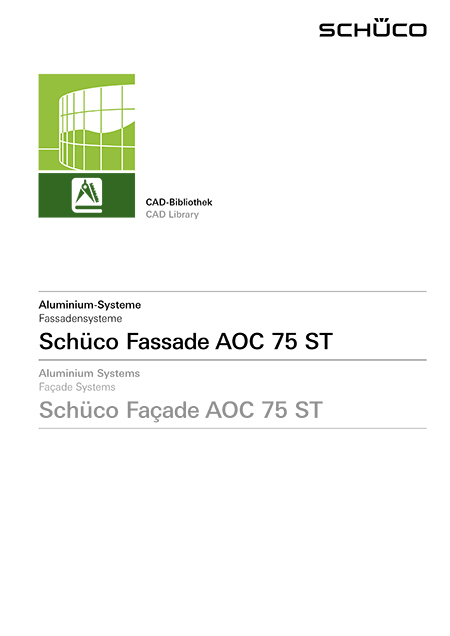

CAD data
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfzeugnis | Schlagregendichtheit Luftdurchlässigkeit Widerstand gegen Windlast |
View onlineDownload (pdf, 84.5 KB) | ||
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Widerstand gegen Windlast |
View onlineDownload (pdf, 88.6 KB) | ||
| Gutachterliche Stellungnahme | Belastungsprüfung | View onlineDownload (pdf, 523.7 KB) | ||
| Gutachterliche Stellungnahme | Luftdurchlässigkeit Schlagregendichtheit Widerstand gegen Windlast |
View onlineDownload (pdf, 176.2 KB) | ||
| Gutachterliche Stellungnahme | Belastungsprüfung | View onlineDownload (pdf, 1018.3 KB) | ||
| Zulassung | Zulassung | View onlineDownload (pdf, 839.2 KB) | ||
| Zulassung | Zulassung | View onlineDownload (pdf, 1022.9 KB) | ||
| Zulassung | Zulassung | View onlineDownload (pdf, 24.2 MB) | ||
| Zulassung | Belastungsprüfung | View onlineDownload (pdf, 845.0 KB) |
