Fabrication benefits
- Excellent design quality: system technology is easy to calculate with reliable implementation
- Innovative components enable optimum works planning: simple and efficient thanks to prefabrication and quick installation without expensive special tools or machinery

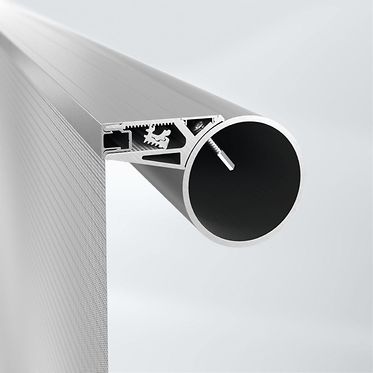

- Profiles are positioned precisely before clamping and special flexholder technology for fold-free areas – for straightforward, easy installation and façade design
- The fabric can be fully or partially removed while the building is in use
Technical information
Min. face width34 mm
Min.-max. system basic depth84…84 mm
Geometry2D, 3D
Surface finishesTissue:, Glass fibre PTFE coated, PVC-Polyester
Min. system basic depth84 mm
Max. system basic depth84 mm
Min.-max. face width34 mm
RecyclableYes

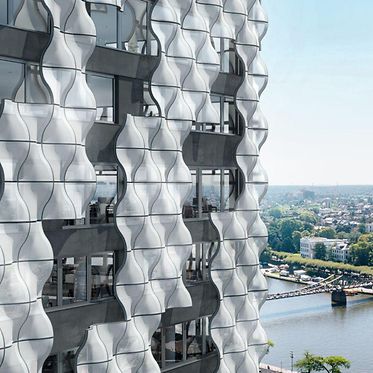

Façade shapecurved, organic
Element shapeRectangle, Triangle, Pentagon, Trapezium, Parallelogram, Square, Polygon
PropertiesSun shading, Protection from heat, Screening, Glare protection
Fabric PTFE__________
Fire classA2
Max. height50000 mm
Max. Wdth2500 mm
Effective temperature-30…+200 °C
Surface weight min. – max.670…700 g/m²
Tensile strength warp / weft max.5000/4800 N/5 cm
WeldableYes
Fabric printNo
Installation directionHorizontal, Vertical, free
Fabric PVC__________
Fire classB1
Max. height50000 mm
Max. Wdth2500 mm
Effective temperature-30…+70 °C
Surface weight min. – max.380…550 g/m²
Tensile strength warp / weft max.3300/3300 N/5 cm
WeldableYes
Fabric printYes
Installation directionHorizontal, Vertical, free
