PRODUCT BENEFITS
Energy
- Two standards of thermal insulation and two outer frame heights offer great flexibility of use
Design
- Different design options available: with concealed or visible vent frame screw fixing; trapezoidal shapes also possible
Automation
- Can be operated manually or electrically, with a linear or chain actuator
- Standard applications and NSHEVS systems can be integrated completely in the building management system
Security
- Can be used for Natural Smoke and Heat Exhaust Ventilation Systems (NSHEVS) in accordance with EN 12101-2
- With special chain actuator, burglar resistance tested to RC 2
Enhanced function
- Flat sill with stepped insulating glazing: good water run-off and high self-cleaning effect
- Different glazing options depending on the design: e.g. special and stepping insulating glass, walk-on glazing or with solar shading installed in the spaces between the panes
- Opening angle up to 90° possible, width and height up to 2100 mm, maximum surface area = 2.73 m² (larger sizes on request), maximum weight = 120 kg, roof pitch from 7° to 75° (roof pitches < 7° or > 75° on request)
TECHNICAL INFOS
- Min. face width
-
- 95 mm
- Uf value of frame (≥)
-
- 2.62 W/(m²·K)
- Max. glass/panel thickness
-
- 48 mm
- Max. vent width
-
- 2100 mm
- Max. vent height
-
- 2100 mm
- Max. sound reduction Rwp
-
- 39 dB(A)
- Air permeability
-
- Class 4
- Watertightness
-
- E 1200
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- Class C5
- CE marking
-
- Ja
- Max. vent weight
-
- 120 kg
- Surface finishes
-
- Powder
- Anodised
- Paint
- Min.-max. glass/panel thickness
-
- 26…48 mm
- Certificates
-
- cradle2cradle SILVER
- Max. height
-
- 2100 mm
- Max. width
-
- 2100 mm
- Min. system basic depth
-
- 79 mm
- SYSTEM / MATERIAL
-
- Aluminium
- FAÇADE TYPE
-
- Insert units
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Framed look
- Visible vent
- Max. weight
-
- 120 kg
- Blast resistance
-
- No
- Max. system basic depth
-
- 84 mm
- Min.-max. face width
-
- 95 mm
- Min. glass/panel thickness
-
- 26 mm
- Face width of pressure plate / cover cap profile
-
- 84 mm
- Face width, outside
-
- 95 mm
- Face width, inside
-
- 95 mm
- Face width of frame
-
- 95 mm
- Total width of unit
-
- 2100 mm
- Total height of unit
-
- 2100 mm
- SHEVS function
-
- Ja
- Standards
-
- DIN EN 1627
- EN 14351
- Installation angle
-
- 75°
- Drainage
-
- Ja
- Drainage levels
-
- 1
- Recyclable
-
- Ja
- Max. unit weight
-
- 120 kg
TENDER SPECIFICATIONS/PREVIEW SPECIFICATION

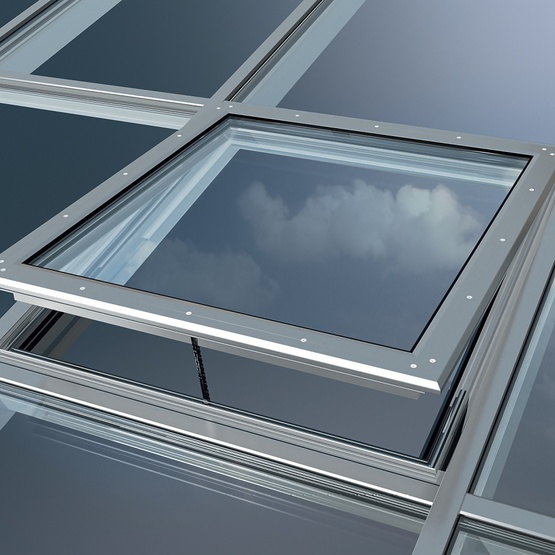

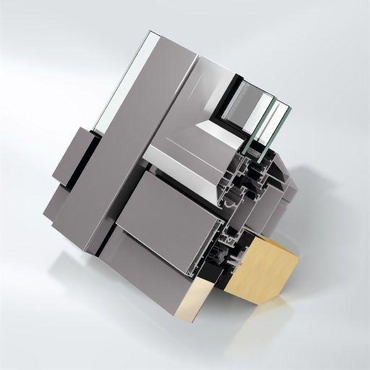

Schüco AWS 57 RO “roof window”
Thermally insulated top-hung vent insert unit for use in pitched roofs with a pitch in excess of 7°
Design features:
The thermally insulated outer frame is fixed into the glazing rebate of the skylight construction (separate description).
The frame edges are joined using precision-fit corner cleats.
The insert unit must be designed with a “high” outer frame and thermal insulation.
The vent frame must be designed with a visible screw fixing / flat seal and U-shaped frame.
Drainage is via the outer chamber directly on the roof level. The vapour pressure is equalised via the glazing rebate base in the transom rebate of the roof construction.
The vent frames are sealed by means of an external, an internal and an additional centre weatherstrip level.
Standard glazing from 26-48 mm can be used. The rebate area is completely covered by an externally bevelled glazing pressure plate on both sides.
Hinges from the system are concealed and fixed in place by means of sliding blocks. Opening angles of up to 90° are possible.
The concealed chain actuators for operating the vents are described separately.
Technical data:
Glass thicknesses of: 26-48 mm
Maximum width: 2.1 m
Maximum height: 2.1 m
Maximum unit size: 2.73 m²
Maximum vent weight: 120 kg
Opening angle: Up to 90°
Roof pitch range: 7° to 75°
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||||||||||
| System report |
|
C08-SP-001-MPA-BS_e (pdf, 2 MB) | |||||||||||||||
| Test report |
|
C08-SP-001-MPA-BS_e (pdf, 704 KB) | |||||||||||||||
