TropTec AW 48.NI

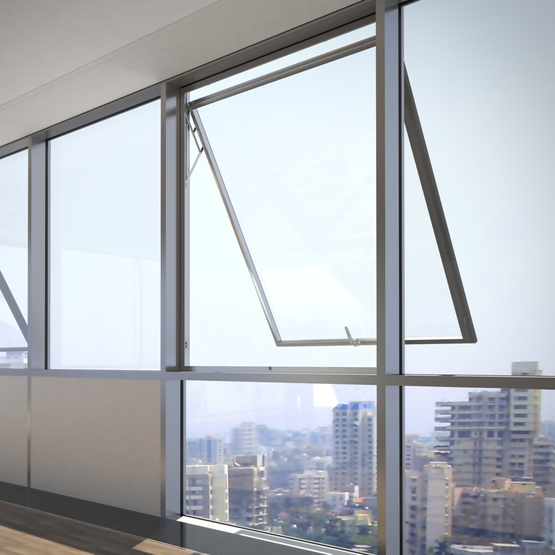

The Schüco TropTec AW 48.NI aluminium façade opening units have been specially developed as outward-opening projected top-hung opening units as part of the Schüco TropTec SC 50.NI / SC 50 SG.NI mullion / transom façade system. The intercompatible components together with comprehensively tested and certified system features offer a high level of quality.

Façade opening units to suit every requirement
The units can be equipped with double insulating glass. Alternatively, Schüco TropTec AW 48.NI can also be installed with single glazing. Vent weights up to 150 kg are possible. There are various locking options to be selected depending on market requirements, wind load and the size of the unit. Due to minimal face widths on the inside and an all-glass look on the outside, the new windows can be perfectly combinded with the Schüco TropTec SC 50.NI and SC 50 SG.NI mullion / transom façades.

หมวดหมู่:

PRODUCT BENEFITS

  • Façade insert units as outward-opening projected top-hung opening units:
    – Single glazing: 5 / 6 / 8mm
    – Insulating glass 22–32mm
  • Proven quality in accordance with DIN and En system testing
  • European quality at Indian market prices
  • Complete range of products from Schüco
  • Wide range of applications
    – Can be used in Schüco TropTec SC 50.NI and Schüco TropTec SC 50 SG.NI façades
    – Wide range of fittings for different vent sizes and weights
    – High level of watertightness even for high rise buildings
    – Exellent sound insulation
  • Attractive design:
    – Uniform appearance of the façade due to the all-glass look of the insert unit
    – Narrow profile face widths inside
  • Efficient and reliable planning and fabrication:
    – “step-by-step”documentation
    – 3D animation provides help with fabrication
  • Software to facilitate design and ordering

TEST DOCUMENTS

Type of document
Type of test Result
Doc. no. / Download
Classification report
Airborne sound insulation siehe Prüfbericht
11/08-A304-B2 AW 48.N (pdf, 1 MB)
Classification report
Air permeability
Watertightness
Resistance to wind load
11/09-A309-P4 AW 48.NI M. (pdf, 509 KB)
Classification report
Durability
Air permeability
Watertightness
Resistance to wind load
11/10-A378-G4 AW 48.NI M. (pdf, 6 MB)
Classification report
Air permeability
Watertightness
Resistance to wind load
11/09-A309-B3 AW 48.NI V. (pdf, 552 KB)
Classification report
Durability
Air permeability
Watertightness
Resistance to wind load +/-2400
Resistance to wind load
11/10-A378-G3 AW 48.NI V. (pdf, 8 MB)
