Technical information
Uf value of frame (≥)0.82 W/(m²·K)
Min. face width50 mm
Max. glass/panel thickness70 mm
Max. weight1800 kg
Air permeabilityAE 750
WatertightnessRE 1200
Min.-max. face width50 mm
Min. glass/panel thickness16 mm
Min.-max. glass/panel thickness16…70 mm
Installation angle0-75°
DrainageYes
Drainage levels3
Wind load resistance2.0 [kN/m²]
Documentation

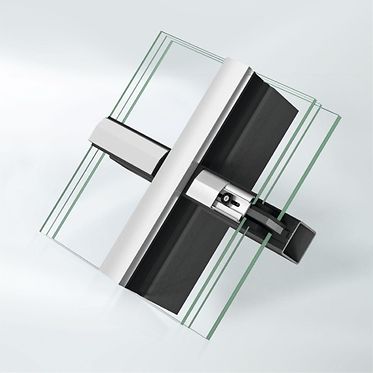

Façade Systems – VISS Basic roof glazing
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Gutachterliche Stellungnahme | Schlagregendichtheit Luftdurchlässigkeit Widerstand gegen Windlast |
1200 AE750 2000 |
View onlineDownload (pdf, 2.0 MB) |
