Fabrication benefits
- Small number of components enables innovative detailed solutions
- The absence of a transom rebate profile, optimised seals and cross-point design allow easy processing
- Low article variety for optimized stockkeeping
Technical information
Uf value of frame (≥)0.64 W/(m²·K)
Min. face width50 mm
Max. glass/panel thickness70 mm
Max. weight1800 kg
Air permeabilityAE 750
WatertightnessRE 1200
Min. basic depth of mullion25 mm
Max. basic depth of mullion280 mm
Min.-max. basic depth of mullion25…280 mm
Max. face width60 mm
Min.-max. face width50…60 mm
Min. glass/panel thickness16 mm
Min.-max. glass/panel thickness16…70 mm
Max. glass/infill weight1800 kg
Installation angle0-75°
Skylight construction, min. vert. incline10°
Skylight construction, max. vert. incline75°
Skylight constructionYes
DrainageYes
Drainage levels3
Wind load resistance2.0 [kN/m²]
Sun shading attachmentYes
CertificatesEPD
CE markingNo
RecyclableYes
StandardsEN ISO 10077
Building authority approvalYes
Colour-independentYes
Documentation

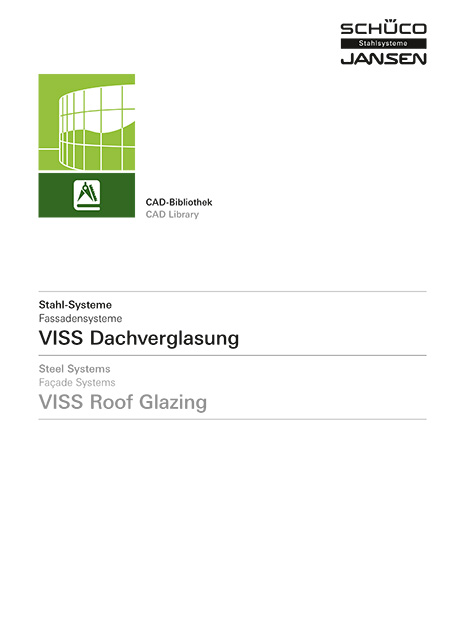

Façade Systems – VISS roof glazing
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Gutachterliche Stellungnahme | Schlagregendichtheit Luftdurchlässigkeit Widerstand gegen Windlast |
1200 AE750 2000 |
View onlineDownload (pdf, 2.0 MB) |
