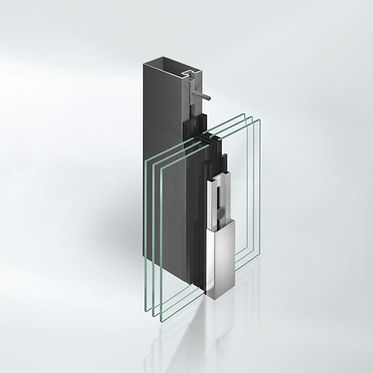

VISS TVS vertical

The range of possible applications for the steel profile system VISS® TVS (face widths of 50 and 60 mm) covers all types of sloped glazing: from simple mono-pitch roofs to the complex geometries of gable roofs and pyramids.

In large area vertical façade construction, steel cannot be beaten as the material for profile systems: the high structural properties of the material mean that façade units with large module widths can be achieved with comparatively small basic depths – and with the same narrow profile widths.

The narrow face widths of the VISS® TSV system ensure maximum light penetration. The intersection of the skylight construction and the vertical façade is solved elegantly.

หมวดหมู่:

Fabrication benefits

  • Slim face widths of 50 and 60 mm for maximum light penetration
  • Variety in design due to wide range of aluminium cover caps
  • Special profiles for wall attachments and insert units
  • Flexible use of infill units in 20 to 40mm thickness
  • Elegant intersection of skylight and vertical façade
  • High level of thermal insulation
  • TRAV-tested
  • CE conformable

Technical information

Uf value of frame (≥)1.2 W/(m²·K)
Min. face width50 mm
Max. glass/panel thickness70 mm
Max. weight1800 kg
Surface finishesRAL, Powder, Paint
Air permeabilityAE
Max. sound reduction Rwp47 dB(A)
WatertightnessRE 1200
Impact resistanceClass 5
Burglar resistanceUp to RC4
Suitable for safety barrier loadingYes
Bullet resistanceUp to FB6
Min. basic depth of mullion50 mm
Max. basic depth of mullion280 mm
Min.-max. basic depth of mullion50…280 mm
Max. face width60 mm
Min.-max. face width50…60 mm
Min. glass/panel thickness6 mm
Min.-max. glass/panel thickness6…70 mm
Max. glass/infill weight1800 kg
Installation angle0-15°
Polygon façade angle15°
DrainageYes
Drainage levels2
Wind load resistance2.0 [kN/m²]
Sun shading attachmentYes
Security systemYes
CertificatesEPD
CE markingYes
RecyclableYes
StandardsEN ISO 10077, DIN EN 13830, EN 1522
CWCT certifiedYes
Building authority approvalYes
Colour-independentYes

Documentation

Order and technical manual 2-2 – Fire-resistant façades

View onlineDownload

Façade Systems – VISS

View onlineDownload

Order and fabrication manual – VISS RC

View onlineDownload

Architecture in steel and glass

View onlineDownload

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Einbruchhemmung
Einbruchhemmung		 RC3
RC3		 RC3 View onlineDownload (pdf, 521.9 KB)
Prüfbericht Pendelschlagversuch Kategorie A View onlineDownload (pdf, 563.9 KB)
Prüfbericht Pendelschlagversuch Kategorie A View onlineDownload (pdf, 954.5 KB)
Prüfzeugnis Beschuß FB4 NS FB4 NS View onlineDownload (pdf, 169.2 KB)
Prüfzeugnis Beschuß FB5 S FB5 S View onlineDownload (pdf, 1.6 MB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Widerstand gegen Windlast
Pendelschlagversuch		 Klasse AE
Klasse RE 1200
2000 Pa/ 3000 Pa
I5 / E5		 Klasse AE
Klasse RE 1200
2000 Pa/ 3000 Pa
I5 / E5		 View onlineDownload (pdf, 323.9 KB)
Gutachterliche Stellungnahme Einbruchhemmung
Einbruchhemmung		 RC2
RC2		 EN 1627 View onlineDownload (pdf, 596.3 KB)
Gutachterliche Stellungnahme Einbruchhemmung RC3 View onlineDownload (pdf, 947.7 KB)
Gutachterliche Stellungnahme Schallmessung View onlineDownload (pdf, 93.1 KB)
Gutachterliche Stellungnahme Schlagregendichtheit AE, RE 1200, 2000 Pa, I5/E5 CE Leistungswerte RC3 View onlineDownload (pdf, 323.9 KB)
1-10 of 13

Brochures

Systems full of individual possibilities

View onlineDownload
