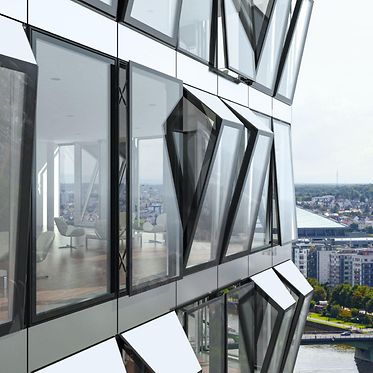

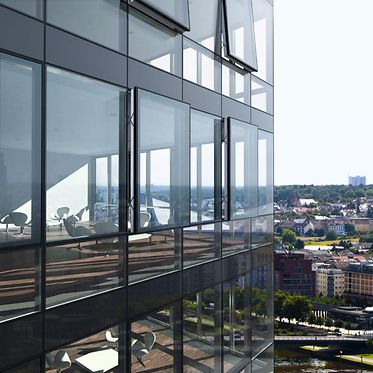

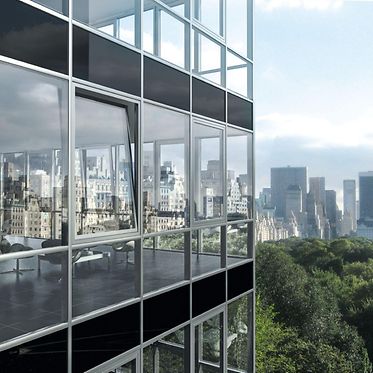

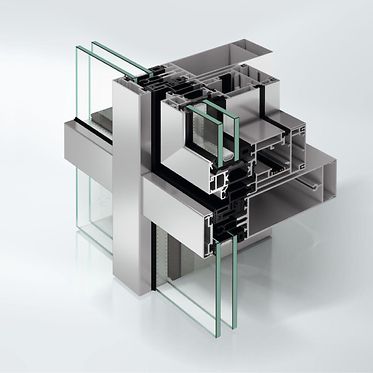

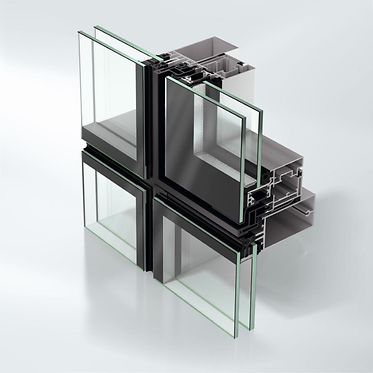

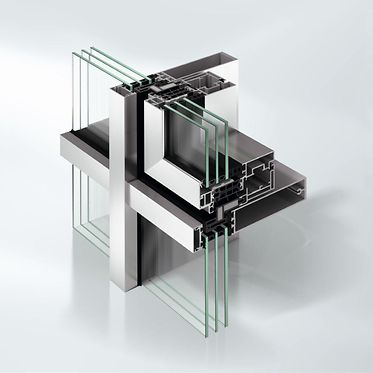

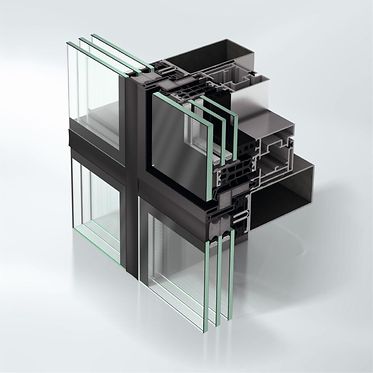

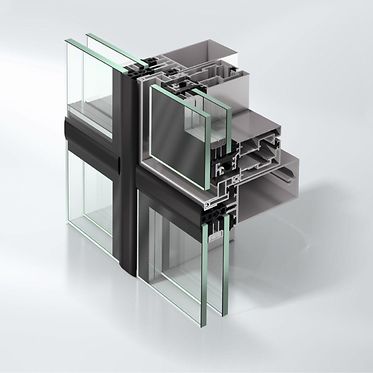

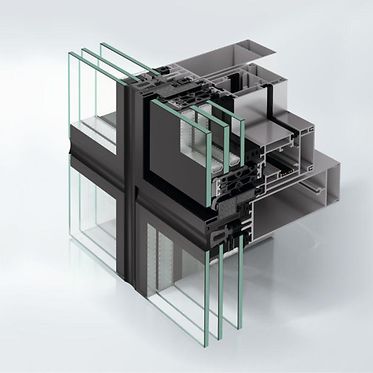

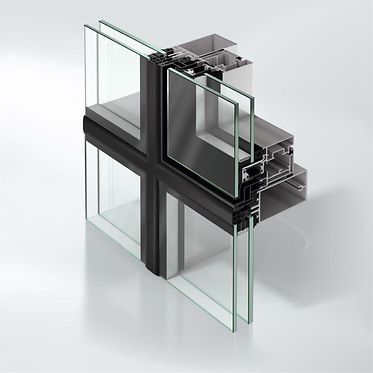

Fabrication benefits
- Outer and vent frames are joined in the workshop and are installed as a complete unit on the construction site
- Simple installation of the window unit in the façade on the building site thanks to innovative clip principle using a spring clip
- Use of locking cams and splash-proof cable connectors: simple installation of profile-integrated Schüco TipTronic drive technology
- Innovative range of fittings for easy pre-assembly in the workshop

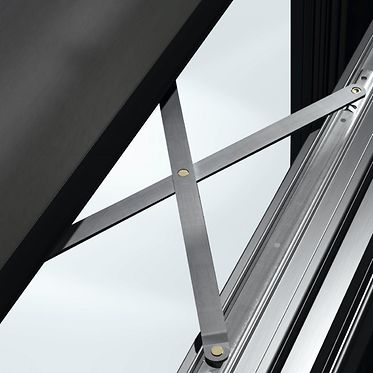

- Easy to adjust and set the stays even under full load

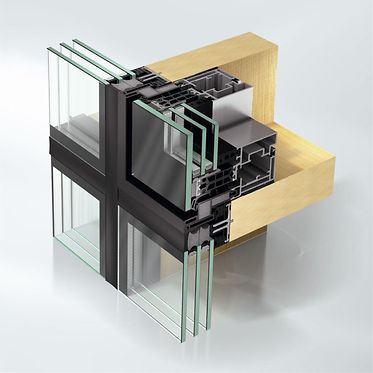

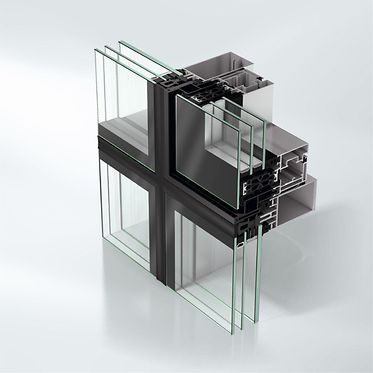

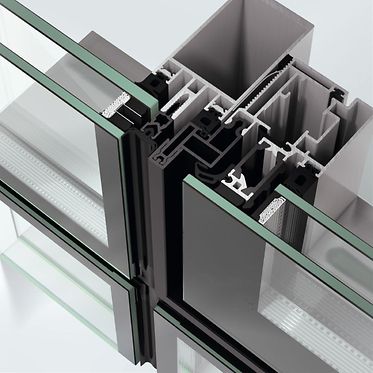

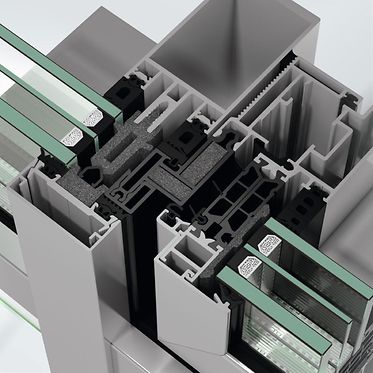

Technical information
Uf value of frame (≥)1.8 W/(m²·K)
Min. face width52 mm
Min.-max. system basic depth77…121 mm
Max. glass/panel thickness44 mm
Max. weight250 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityClass 4
Max. sound reduction Rwp43 dB(A)
WatertightnessE 1200
Impact resistanceClass 4
Burglar resistanceUp to RC2
Suitable for safety barrier loadingYes
Min. system basic depth77 mm
Max. system basic depth121 mm
Max. vent width2700 mm
Max. vent height3600 mm
Max. vent weight250 kg
Total width of unit2700 mm
Total height of unit3600 mm
Max. unit weight250 kg
Min.-max. face width52 mm
Face width of pressure plate / cover cap profile40 mm
Face width, outside52 mm
Face width, inside58 mm
Min. glass/panel thickness24 mm
Min.-max. glass/panel thickness24…44 mm
Max. width2700 mm
Max. height3600 mm
Installation angle90°
DrainageYes
Drainage levels1
Wind load resistanceC5/B5
Blast resistanceNo
CE markingYes
RecyclableYes
StandardsDIN EN 1627, EN 14351, General building authority approval
AAMA certifiedYes
Building authority approvalYes
European Technical AssessmentNo
Documentation

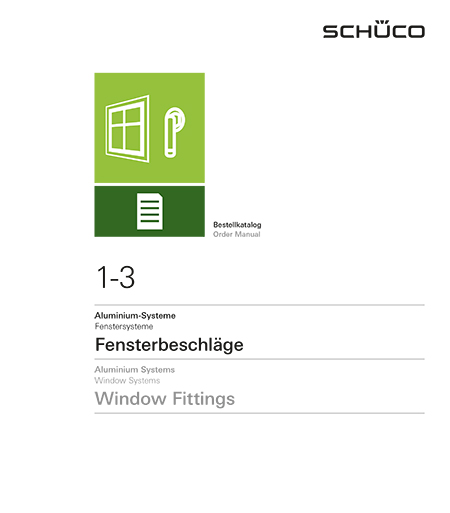

Order manual 1-3 – Window fittings

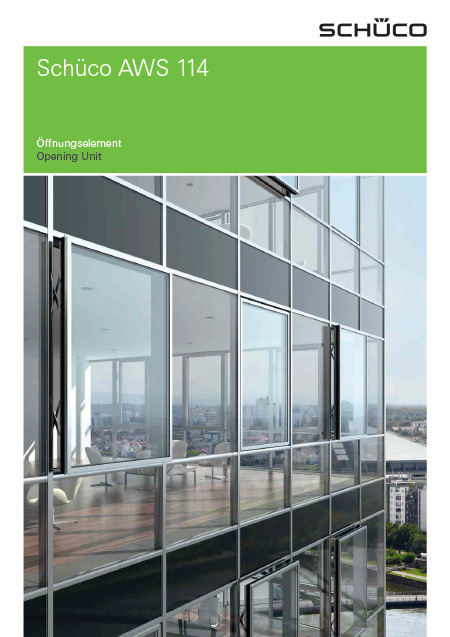

Schüco Window AWS 114
Schüco AWS / ADS

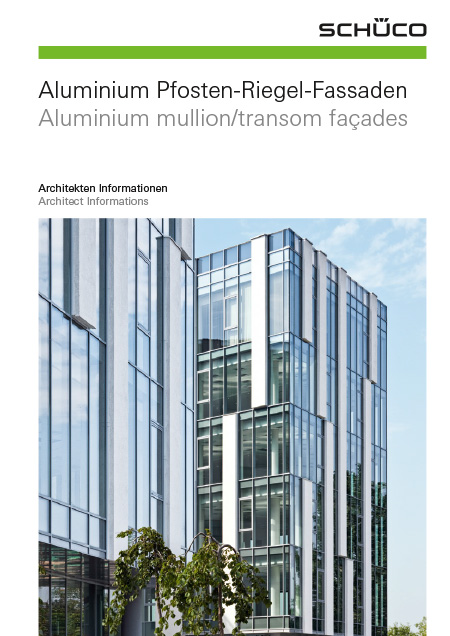

Aluminium mullion/transom façades
Schüco Parametric System – Architect Info 12
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfbericht | Dauerlaufprüfung | EN 13126-10:2008 | 5 | View onlineDownload (pdf, 213.7 KB) |
| Prüfzeugnis | Dauerlaufprüfung | EN 12400 | Klasse 3 | View onlineDownload (pdf, 377.9 KB) |
| Prüfbericht | Dauerlaufprüfung | EN 13126-10:2008 | 5 | View onlineDownload (pdf, 201.6 KB) |
| Prüfbericht | Schlagregendichtheit Windwiderstandsfähigkeit Luftdurchlässigkeit Einbruchhemmung Dauerlaufprüfung |
View onlineDownload (pdf, 690.5 KB) | ||
| Gutachterliche Stellungnahme | Zulassung | Übertragung | View onlineDownload (pdf, 199.3 KB) | |
| Gutachterliche Stellungnahme | Schallmessung | View onlineDownload (pdf, 3.8 MB) | ||
| Gutachterliche Stellungnahme | Schlagregendichtheit Windwiderstandsfähigkeit Luftdurchlässigkeit Einbruchhemmung Dauerlaufprüfung |
View onlineDownload (pdf, 5.2 MB) | ||
| Gutachterliche Stellungnahme | Einbruchhemmung | View onlineDownload (pdf, 2.2 MB) | ||
| Gutachterliche Stellungnahme | Bedienungskraft Schlagregendichtheit Windwiderstandsfähigkeit Luftdurchlässigkeit Dauerlaufprüfung Verbiegen/Verwinden |
View onlineDownload (pdf, 424.4 KB) | ||
| Gutachterliche Stellungnahme | Bedienungskraft Schlagregendichtheit Windwiderstandsfähigkeit Luftdurchlässigkeit Dauerlaufprüfung Verbiegen/Verwinden |
View onlineDownload (pdf, 423.9 KB) |
