FABRICATION BENEFITS
- Multi-purpose groove for rapid, push-in fixing of fittings using sliding blocks (Schüco Door ADS 65.NI only)
- Continuous leaf profile
- Can be integrated in the building automation system
- Can be made as a swing door or an all-glass door
TECHNICAL INFOS
- System basic depth
-
- 65 mm
- Min. face width
-
- 137 mm
- Max. glass/panel thickness
-
- 39 mm
- Max. sound reduction Rwp
-
- 44 dB(A)
- Burglar resistance
-
- Up to RC2
- CE marking
-
- Ja
- Area of application
-
- Residential projects
- Commercial projects
- Internal use
- Proof of durability
-
- 200,000 cycles in accordance with DIN EN 12400
- Min.-max. glass/panel thickness
-
- …39 mm
- Mechanical strength
-
- Class 4
- Concealed fittings system
-
- Ja
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Non-insulated
- DESIGN
-
- Framed look
- FUNCTIONS
-
- Increased security
- Interior design
- Max. height
-
- 3220 mm
- Max. width
-
- 3180 mm
- Min.-max. height
-
- 1750…3220 mm
- Min.-max. width
-
- 625…3180 mm
- Max. clear opening dimension (w x h)
-
- 2820 x 2988 mm
- Min. clear opening dimension (w x h)
-
- 460 x 1648 mm
- Type of design
-
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- For use in glazing
- Special applications
-
- Swing door
- Anti-finger-trap door
- Opposed opening door
- DIN direction
-
- DIN LH / RH
TENDER SPECIFICATIONS
PREVIEW SPECIFICATION

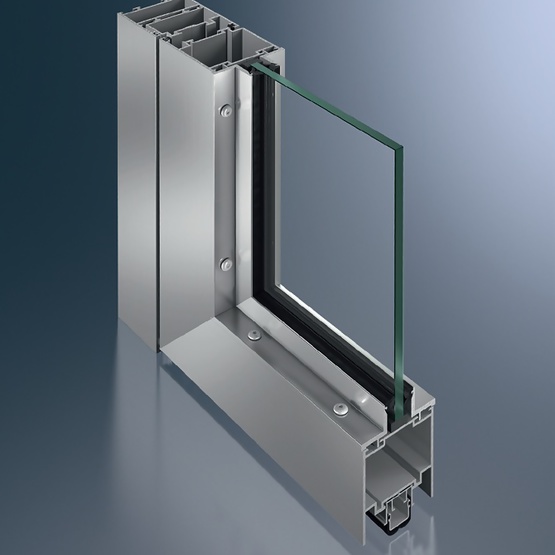

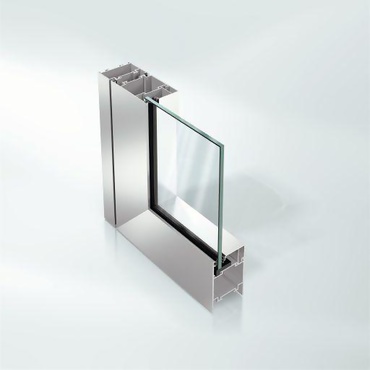

Schüco ADS 65.NI, non-insulated aluminium door and partition wall system
With 65 mm basic depth.
Design features:
The construction is flush-fitted on the outside and inside.
The system must be fitted with square glazing beads.
The door leaves must have a four-sided mitre-cut leaf profile.
The sill is sealed by a gasket that falls into place automatically when the door is closed.
Depending on requirements, a threshold profile and a gasket with lips can also be used.

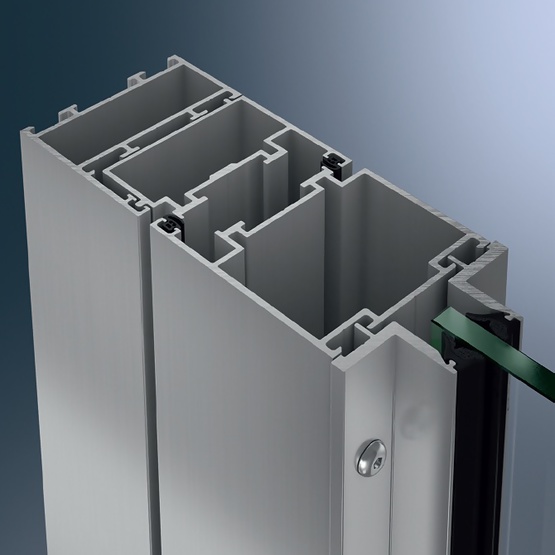

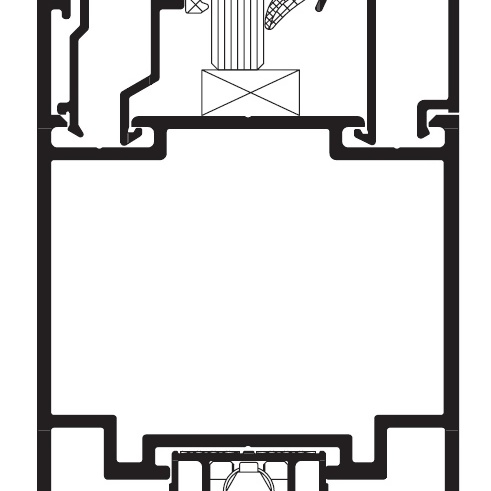

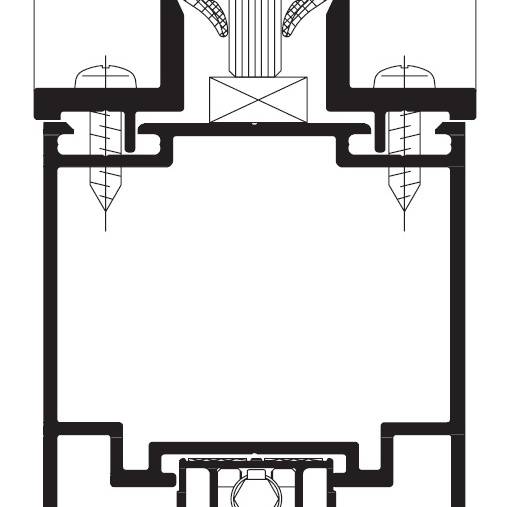

Profile basic depths:
Outer frame, transom, mullion,
leaf frame and sill 65 mm
Profile face widths:
Outer frame, side / top 59 mm
Outer frame extension 34 mm
Mullion 84 mm
Transom 84 mm
Leaf frame (door) 98 mm
Continuous sill rail 98 mm
Sill 142 mm
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||
| Classification report |
|
PB_Z10-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB Z41-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB_Z19-H01-04-en-01 (pdf, 891 KB) | |||
| Classification report |
|
PB Z34-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB_Z21-H01-04-en-01 (pdf, 896 KB) | |||
| Classification report |
|
PB Z32-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB Z35-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB Z37-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB Z42-C01-04-en-01 (pdf, 1 MB) | |||
| Classification report |
|
PB_Z23-H01-04-en-01 (pdf, 904 KB) | |||
