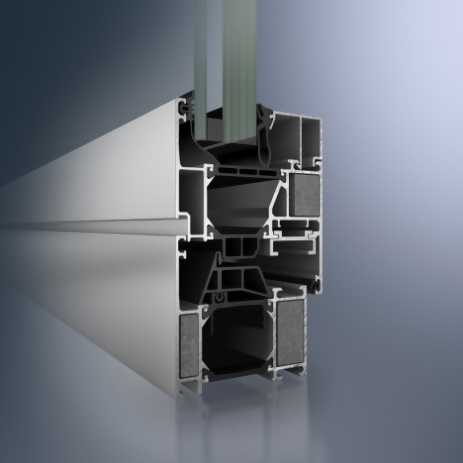

AWS 60 FR 30 Fire-resistant side-hung window

Design features

Special fire boards are inserted in the aluminium hollow profiles.

The composite profile must be secured using stainless steel bridges.

In the area of the vent rebates, the insulating bars and the centre gaskets are fitted with gasket cords, which guarantee sealing in the event of a fire.

Only tested fire-resistant glazing and/or infills that are listed in the classification report may be used.

All fire-resistant glass is sealed in using external and internal EPDM gaskets.

Only tested fittings belonging to the system may be used.

Profile basic depths:

Outer frame                                                60 mm

Vent frame                                                 70 mm

Profile face widths:

Outer frame                                                79 mm

Insert outer frame                                59 + 10 mm

Vent frame                                                 51 mm

The units must be delivered with a CE marking, Declaration of Performance and confirmation of installation.

The units must be installed in accordance with the guidelines of the installation, maintenance and cleaning instructions.
