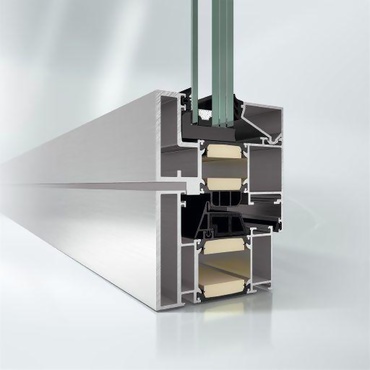

- Bullet resistance for windows FB 4 in accordance with EN 1522
- Narrow profile face widths, compatible with standard series
- Schüco system benefits are retained, e.g. weathertightness, sound reduction and thermal insulation
- Fully compatible with Schüco AWS 90 BR for burglar resistance and simplified warehouse storage
- Standard corner and T-cleats can be used
- Surface finishing without restrictions
- Rolling together by customer possible
- No thickened outer profile, bullet resistance with insert profiles
TECHNICAL INFOS
- System basic depth
-
- 90 mm
- Min. face width
-
- 127 mm
- Uf value of frame (≥)
-
- 1.64 W/(m²·K)
- Max. glass/panel thickness
-
- 56 mm
- Max. sound reduction Rwp
-
- 44 dB(A)
- Air permeability
-
- Class 4
- Watertightness
-
- E 750
- Burglar resistance
-
- Up to RC4
- Wind load resistance
-
- C5/B5
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Security system
-
- Ja
- Min.-max. glass/panel thickness
-
- 17…56 mm
- Mechanical strength
-
- Class 4
- EN 14351
- DIN EN 13115
- Concealed fittings system
-
- Ja
- Bullet resistance
-
- Up to FB4
- Up to FB1
- Up to FB2
- Up to FB3
- SYSTEM / MATERIAL
-
- Aluminium
- FUNCTIONS
-
- Burglar resistance
- Increased security
- Bullet resistance
TENDER SPECIFICATIONS
PREVIEW SPECIFICATION

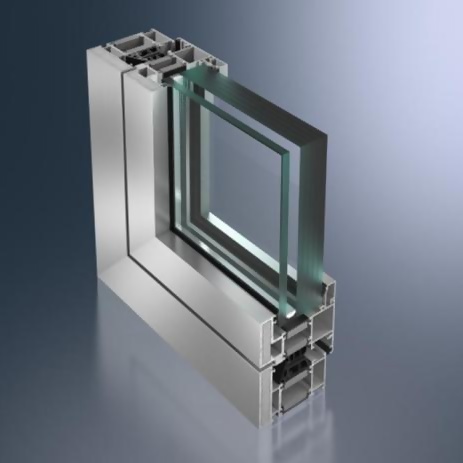

Schüco AWS 90 BR, thermally insulated aluminium window system, FB 4
With 90 mm basic depth.
Information:
Bullet resistance in accordance with DIN EN 1522, security class: FB 4 and/or in conjunction with burglar resistance RC 2 – 3 (WK2-3)
Combination with FB 4 façade on request
Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
Thermally insulated insulating bars with hollow chambers form the rebate for the co-extruded, double hollow chamber centre gasket fitted with a foam core.
For improved separation of heat transfer, this must also be designed with a fin.

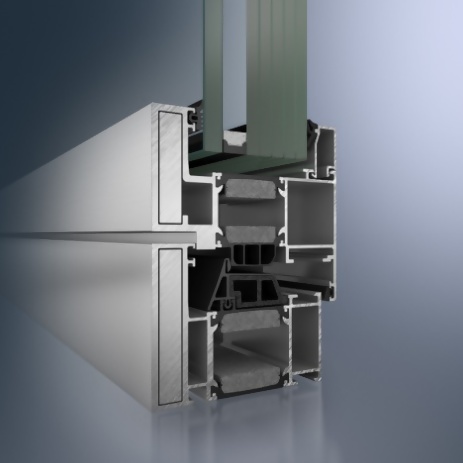

The outer and vent frames have an external, 20 mm deep, hollow chamber, which is filled with aluminium reinforcing profiles as per the test certificate.
The glazing must be attached to the vent frame using a sealing compound that is compatible with the edge seal as per the specifications of the test certificate and lined with compression-resistant packing.
Vent sizes up to max. 1.45 x 1.80 m are possible, depending on the glazing
Profile basic depths:
Outer frame, mullion, transom 90 mm
Vent frame (face-fitted window) 100 mm
Profile face widths:
Outer frame 69 mm
Vent frame 53 mm
Mullion / transom 94 mm
Vent frame (window) 53 mm
Vent frame (crank-operated turn/tilt) 53 mm
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||||||||
| System report |
|
11-002103-PR04 (pdf, 814 KB) | |||||||||||||
| Classification report |
|
10-001679-PB07 (pdf, 2 MB) | |||||||||||||
| Classification report |
|
10-001679-PB08 (pdf, 2 MB) | |||||||||||||
| Expert statement |
|
11-002103-PR01 (pdf, 1 MB) | |||||||||||||
| Expert statement |
|
13-001417-PR01 (pdf, 3 MB) | |||||||||||||
