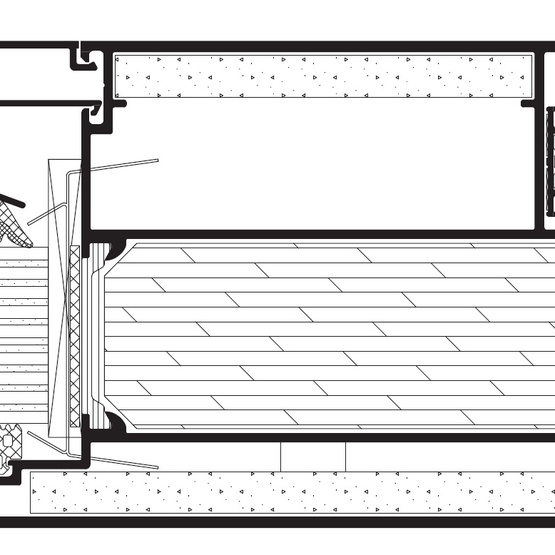

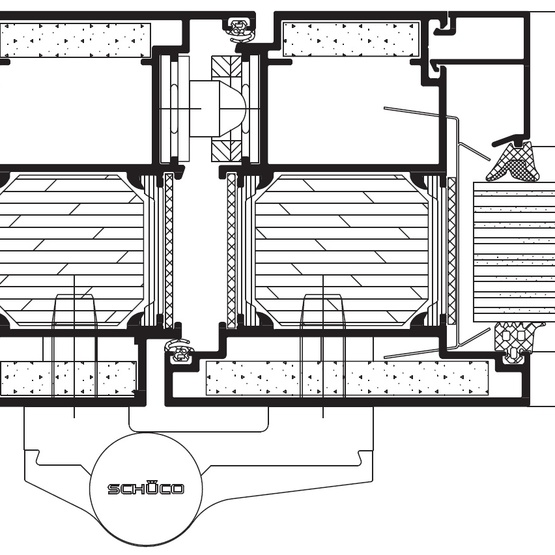

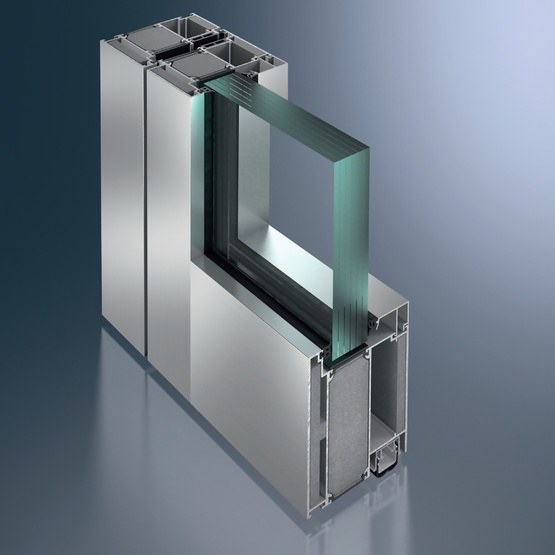

Firestop T90 / F90 for 90 minute fire resistance

The fittings for the T-90 fire-resistant units must be used in accordance with approval certificate no.: Z-6.20-1853, T 90-1 / T 90-2 “Firestop T90”.

Surface-mounted hinges, T-90, feature contour
Three-part surface-mounted hinges with an axis dimension of 22/36 mm, for leaf loads up to 300 kg.

Design features:
The hinge pin is guided in a plastic bearing bush. It must be secured against removal when the door is closed by means of a grub screw.
Category of use in accordance with DIN EN 1935 Class 4
Corrosion protection in accordance with DIN EN 1670 Class 4
Hinge class in accordance with DIN EN 1935 Class 14
Mechanical loading in accordance with DIN EN 12400 Class 8

BT 600 fitting for single-leaf, aluminium, T 90-1 fire doors in accordance with DIN 4102

Door hinges and security pins:
In accordance with the description and anticipated loads.

Lock:
Latch-and-bolt lock, single throw, stainless steel face plate, bolt (with anti-saw protection) and latch, nickel-plated, designed for profile cylinder. Doors with clearance > 2293 mm to 2493 mm must be fitted with a latch-and-bolt lock with top locking.
Strike plate.

Operating the access leaf:
Inside: door handle Schüco – Design Art. No.: 240191, stainless steel.
Outside: door handle Schüco – Design Art. No.: 240191, stainless steel.

Door closer:
“DORMA TS 93” or “GEZE TS 5000”, slide rail, closer size corresponds to door leaf width.

BT 601 fitting for single-leaf, aluminium, T 90-1 fire doors in accordance with DIN 4102

Door hinges and security pins:
In accordance with the description and anticipated loads.

Lock:
Latch-and-bolt lock, single throw, stainless steel face plate, bolt (with anti-saw protection) and latch, nickel-plated, designed for profile cylinder. Doors with clearance > 2293 mm to 2493 mm must be fitted with a latch-and-bolt lock with top locking.
Strike plate.

Operating the access leaf:
Inside: door handle Schüco – Design Art. No.: 240191, stainless steel.
Outside: door pull Schüco Art. No.: 210714, stainless steel.

Door closer:
“DORMA TS 93” or “GEZE TS 5000”, slide rail, closer size corresponds to door leaf width.

BT 650 fitting for double-leaf, aluminium, T 90-2 fire doors in accordance with DIN 4102

Door hinges and security pins:
In accordance with the description and anticipated loads.

Lock:
Latch-and-bolt lock, single throw, stainless steel face plate, bolt (with anti-saw protection) and latch, nickel-plated, designed for profile cylinder. Doors with clearance > 2293 mm to 2493 mm must be fitted with a latch-and-bolt lock with top locking.
Strike plate.

Operating the secondary leaf:
Concealed rebate lever bolt, switch latch, shoot bolts, shoot bolt guide, floor socket and fixing material.

Operating the access leaf:
Inside: door handle Schüco – Design Art. No.: 240191, stainless steel.
Outside: door handle Schüco – Design Art. No.: 240191, stainless steel.

Door closer on the access and secondary leaf:
“DORMA TS 93 GSR” or “GEZE TS 5000 IS”, with integrated door selector arm, closer size corresponds to door leaf widths.

BT 651 fitting for double-leaf, aluminium, T 90-2 fire doors in accordance with DIN 4102

Door hinges and security pins:
In accordance with the description and anticipated loads.

Lock:
Latch-and-bolt lock, single throw, stainless steel face plate, bolt (with anti-saw protection) and latch, nickel-plated, designed for profile cylinder. Doors with clearance > 2293 mm to 2493 mm must be fitted with a latch-and-bolt lock with top locking.
Strike plate.

Operating the secondary leaf:
Concealed rebate lever bolt, switch latch, shoot bolts, shoot bolt guide, floor socket and fixing material.

Operating the access leaf:
Inside: door handle Schüco – Design Art. No.: 240191, stainless steel.
Outside: door pull Schüco Art. No.: 210714, stainless steel.

Door closer on the access and secondary leaf:
“DORMA TS 93 GSR” or “GEZE TS 5000 IS”, with integrated door selector arm, closer size corresponds to door leaf widths.
