Folding Sliding System ASS 70 FD

FABRICATION BENEFITS

Improved function and reduction in installation complexity as well as expansion of opening types

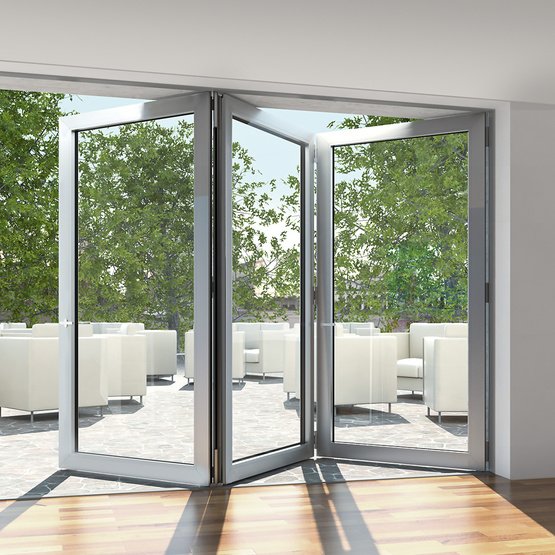

The optimised Schüco ASS 70 FD and ASS 80 FD.HI folding sliding systems offer additional design options thanks to the opening type with 90° corner including a flat, thermally insulated floor threshold. An elegant feature retaining catch with a corresponding flat door handle is also new as an additional option.

An integrated structural expansion profile for system-based compensation for ceiling deflections completes the folding sliding systems which are smooth and easy to operate – an impressive solution for commercial projects and luxury homes.

TECHNICAL INFORMATION

System basic depth

70 mm

Min. face width

120 mm

Max. glass/panel thickness

45 mm

Max. vent width

1200 mm

Max. vent height

3000 mm

Max. sound reduction Rwp

44 dB(A)

Air permeability

Class 3

Watertightness

Class 9A

Burglar resistance

Up to RC2

Wind load resistance

Class C3 / B3

Uw value of window (≥)

2.4 W/(m²·K)

Max. vent weight

100 kg

Min.-max. vent width

500…1200 mm

Area of application

External use
Residential projects

Surface finishes

Powder
Paint

Min.-max. glass/panel thickness

6…45 mm

Barrier-free (≤) 20 mm

Mechanical strength

Class 4

Zero-level threshold

Nein

Width of vent frame

70 mm

Total basic depth

80 mm

Colour-independent

Shear bond

Drainage levels

Outer frame face width

60 mm

Vent frame face width

39 mm

Min.-max. face width of mullion

120…164 mm

Min.-max. face width of meeting stile

136.5…162.5 mm

Fittings installation

Barrel hinge

SYSTEM / MATERIAL

Aluminium

ENERGY

Thermally insulated

System type

Folding sliding system

TYPE OF DRIVE

Manual

Threshold height

&lt
12.5 mm

Opening type

Type 1
Type 2
Type 3
Type 3.1
Type 4
Type 5
Type 6
Type 6/90°

Number of tracks

Single track

Operating type

manual

Track material

Stainless steel

Wind resistance deflection

Class C3 / B3

Min. system basic depth

70 mm

Min.-max. system basic depth

70…80 mm

Min. vent width

500 mm

Min. vent height

500 mm

Min. face width of interlocking section

120 mm

Min. face width of mullion

120 mm

Min. face width of meeting stile

136.5 mm

Meeting stile design

Concealed lock

Max. unit width

7200 mm

Max. unit height

3000 mm

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

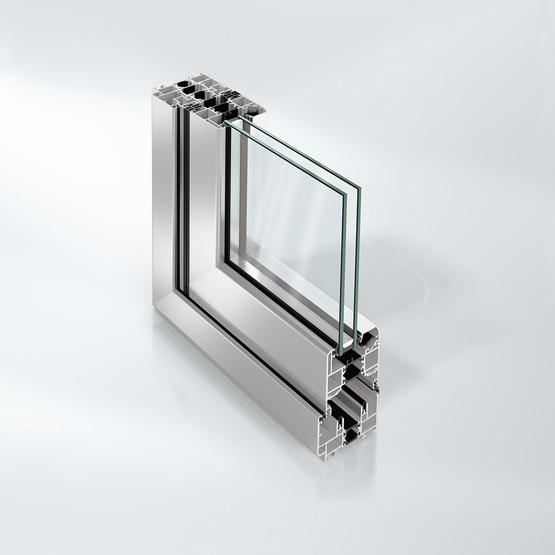

Schüco ASS 70 FD, thermally insulated aluminium folding/sliding door system
With a basic depth of 70 mm.

Design features:
The vent loads are transferred to the sill of the construction by means of roller carriages.
The vent units must be sealed with large-volume hollow gaskets to leave a 12 mm zone unclamped.
An adjustable frame design allows the accommodation of tolerances up to 16 mm.
A structural expansion profile enables subsequent adjustment of the top outer frame.
The outer frame extensions and the inner glass retention beads are rounded (“softline”).
The opening vents are operated with folding handles. The outside face width for a standard fold is 120 mm.
The outer frames are mitred, the frame connections for the outer frames and vent profiles are made with precision corner cleats.
Sill with outer frame profile or with flush-mounted threshold profile.
90° building outer corner can be inward or outward-opening.
Option of ventilation with integrated turn/tilt vent.

Profile basic depths:
Outer frame 80 mm
Vent frame 70 mm
Vent sash bar 65 mm

Profile face widths:
Outer frame 60 mm
Vent frame 54 mm
Vent sash bar 76 mm
