Sliding System ASE 80.HI TipTronic

Highly thermally insulated mechatronic sliding system with special drive and control technology

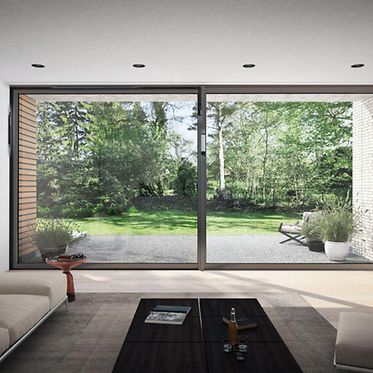

With 12 different opening options, the highly thermally insulated Schüco ASE 80.HI TipTronic (High Insulated) sliding system provides unique design freedom when planning automatically operated sliding systems. The modular and scalable profile system retains its high-quality design even when open thanks to the concealed fittings components.

The aluminium profiles in combination with the specially developed drive and control technology permit large-format constructions for transparent living spaces flooded with light, with vent weights up to 600 kg and vents movable by up to 18 m. Integrated sensors guarantee safe operation.

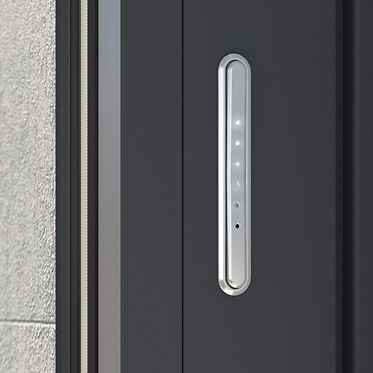

Different operating options including various switches, the Schüco app or a connection to the house automation system can be selected for the highest degree of individual user comfort.

Further benefits of the mechatronic sliding system are that signals and electricity are transferred without cable link connectors, because the integrated main control unit and the commissioning assistant ensure quick fabrication and installation, as well as easy access during servicing and maintenance.

หมวดหมู่:

Fabrication benefits

  • Simple fabrication and installation are guaranteed using signal and energy transfer without cable link connectors between vent and outer frame
  • Cable guide channels for quick cabling
  • Main control unit integrated into outer frame allows for quick fabrication and easy access for servicing and maintenance
  • Commissioning assistant ensures simple, secure guidance through the individual steps

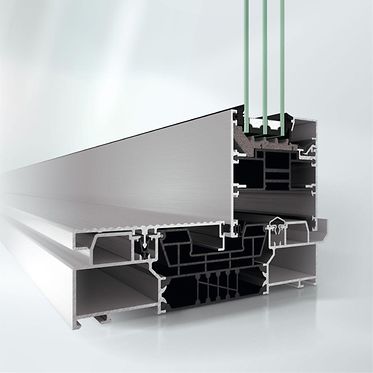

Technical information

System basic depth80 mm
Max. vent width3500 mm
Max. vent height3500 mm
Max. vent weight600 kg
Min. face width82 mm
Max. glass/panel thickness60 mm
Uf value of frame (≥)1.4 W/(m²·K)
Uw value of window (≥)0.99 W/(m²·K)
Burglar resistanceUp to RC2
Max. sound reduction Rwp45 dB(A)
Min. system basic depth180 mm
Min.-max. system basic depth180…292 mm
Width of vent frame80 mm
Min. vent width818 mm
Min.-max. vent width818…3500 mm
Min. vent height1635 mm
Max. unit width21000 mm
Max. unit height3500 mm
Outer frame face width0 mm
Vent frame face width82 mm
Min. face width of interlocking section92 mm
Min. face width of mullion92 mm
Min.-max. face width of mullion92…117 mm
Min. face width of meeting stile172 mm
Min.-max. face width of meeting stile172…192 mm
Min.-max. glass/panel thickness36…60 mm
Threshold height< 12,5
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Area of applicationExternal use, Commercial projects
Shear bondYes
Meeting stile designYes
Fixed lights/identified ventsYes
Number of tracksSingle track, Double track, Triple track
Track materialSteel
Surface finishesPowder, Paint
Concealed lockYes
Concealed drive systemYes
Operating forcesClass 1
Operating typeelectric
TipTronicYes
Electronic driveYes
Opening typeType 1A, Type 1B, Type 1D, Type 2A, Type 2A/1, Type 2C, Type 2D, Type 2D/1, Type 3E, Type 3E/1, Type 3F
Air permeabilityClass 4
Wind load resistanceC5/B5
WatertightnessE 900​
Electronic monitoringYes
CE markingYes
Colour-independentYes

Documentation

[C] Schüco ASE 80.HI

View online

[D] Schüco ASE 60 / 80 TipTronic

View online

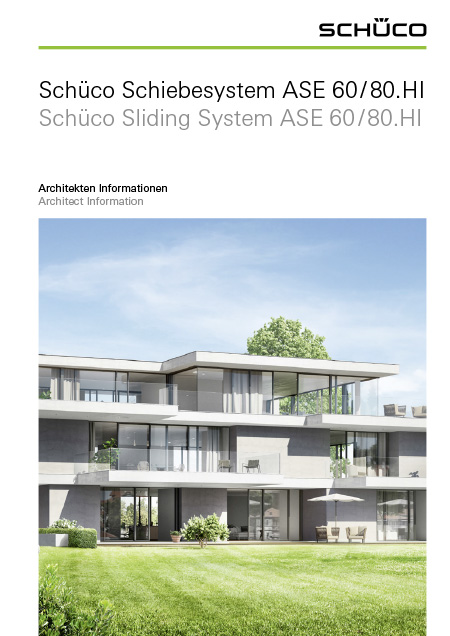

Schüco Sliding System ASE 60/80.HI – Architect Information

View onlineDownload

Statics diagrams – Schüco ASE 60/80.HI sliding system

View onlineDownload

Test documents

Document type Test type Result Classification Document no. / Download
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 1.1 MB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 612.4 KB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 669.8 KB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 1.0 MB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 1.0 MB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 1.1 MB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft		 View onlineDownload (pdf, 1.2 MB)
Nachweis Dauerlaufprüfung 24000 3 View onlineDownload
Nachweis Dauerlaufprüfung 24000 3 View onlineDownload

Brochures

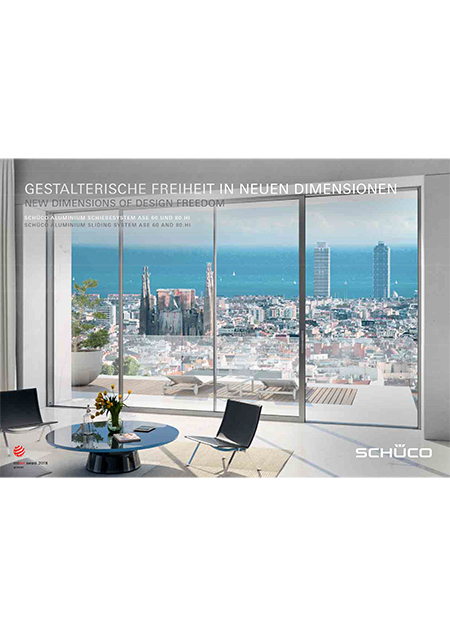

Schüco ASE 60/80 TipTronic SimplySmart
