Fabrication benefits
- Glazing without glazing beads using glass-enclosing vent profile
- Easy, quick and reliable fabrication and production
- Easy-to-install, square-cut joint for vent frames
- Compatible with the Schüco AWS 50 window system: can also be used with toplights and sidelights
- Aluminium/stainless steel tracks
Technical information
Documentation
[Cb] Schüco ASS 32 SC
[Cb] Schüco ASS 32 SC

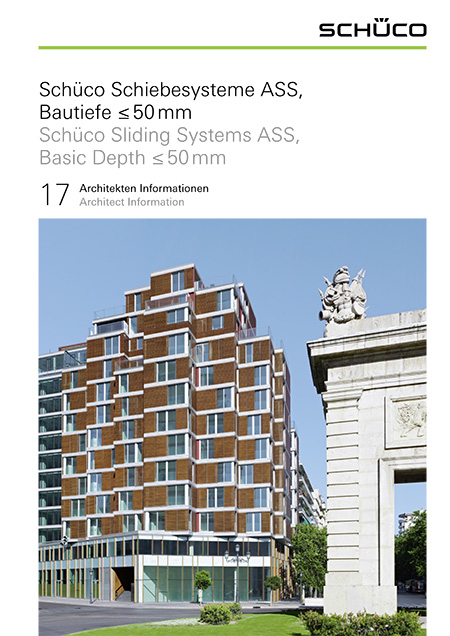

Schüco Sliding Systems ASS, Basic Depth ≤ 50 mm – Architect Information 17
Specification texts

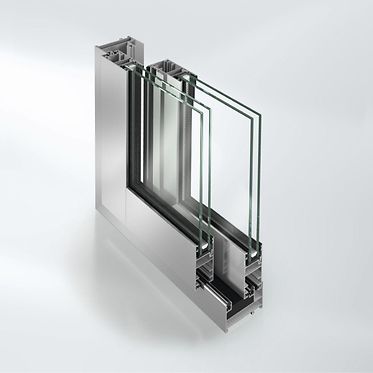

ASS 32 SC, thermally insulated aluminium sliding window and door system
With 50 mm basic frame depth (double track), 90 mm basic frame depth (triple track) and 32 mm basic vent frame depth.
Design features:
Sliding construction with 2 tracks / 3 tracks.
The outer frames and vent frames are mitred, the frame connections are made with precision corner cleats.
The bottom, replaceable tracks are made of stainless steel / aluminium.
Vent profiles can have structural reinforcements to suit requirements.
The units have a continuous drip bar outside on top.
The units are fitted underneath with outer frames with an additional hollow chamber to optimise the drainage system.
Selection of glazing system
The vent frames are glazed using U-shaped hat gaskets that enclose the pane edges. Glazing thicknesses of up to 24 mm can be used. The glazing gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
Or
The vent frames are glazed using internal and external push-in gaskets. Glazing thicknesses of up to 20 mm can be used. The glazing gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
End of selection of glazing system
Profile basic depths:
Outer frame, single track 50 mm
Outer frame, double track 90 mm
Vent frame 32 mm
Profile face widths:
Outer frame, top and side 46 mm
Outer frame, bottom 46 mm
Vent frame 53 / 68 mm

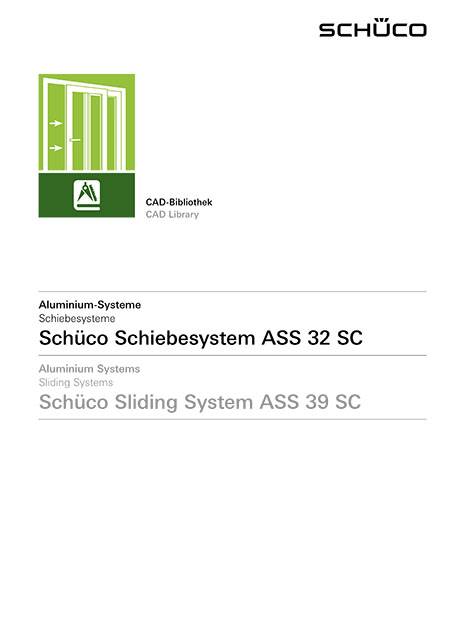

CAD data
Planning principles
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfbericht | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit Bedienungskraft Dauerlaufprüfung |
Klasse C4/B4 Klasse 6A/7A*) Klasse 2 Klasse 4 Klasse 3*) |
EN 12210 EN 12208 EN 12207 EN 13115 EN 12400 |
View onlineDownload (pdf, 83.7 KB) |
| Produktpass | Zulassung ohne Prüfung | nach EN 14351-1 | View onlineDownload (pdf, 748.5 KB) | |
| Produktpass | Zulassung ohne Prüfung | nach EN 14351-1 | View onlineDownload (pdf, 749.5 KB) |
