PRODUCT BENEFITS
Energy
- Wide insulating zone
- Glass thicknesses up to 28 mm
Design
- Proportionally less frame and more glass
- Vent size (W x H): up to 1500 mm x 2300 mm
Security
- Burglar resistance up to class RC 2 in accordance with DIN V ENV 1627
- Modular centre profile for increased wind loads
Enhanced function
- Rollers on bearings for quiet operation
TECHNICAL INFORMATION
- System basic depth
-
- 39 mm
- Min. face width
-
- 70 mm
- Max. glass/panel thickness
-
- 28 mm
- Max. vent width
-
- 1700 mm
- Max. vent height
-
- 2700 mm
- Air permeability
-
- Class 3
- Watertightness
-
- Class 7A
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- Class C3 / B3
- Uw value of window (≥)
-
- 1.3 W/(m²·K)
- Max. vent weight
-
- 160 kg
- Min.-max. vent width
-
- …1700 mm
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Proof of durability
-
- Class 3
- Surface finishes
-
- Powder
- Anodised
- Paint
- Min.-max. glass/panel thickness
-
- 24…28 mm
- Operating forces
-
- Class 1
- Mechanical strength
-
- Class 4
- Outer frame face width
-
- 59 mm
- Vent frame face width
-
- 70 mm
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Thermally insulated
- System type
-
- Sliding systems
- TYPE OF DRIVE
-
- Manual
- Threshold height
-
- &gt
- 20 mm
- Opening type
-
- Type 2A
- Type 2A/1
- Type 2D
- Type 2D/1
- Type 3E/1
- Type 3F
- Type 3E
- Type 1A
- Type 1B
- Type 1D
- Number of tracks
-
- Double track
- Triple track
- Single track
- Operating type
-
- manual
- Min. face width of interlocking section
-
- 39 mm
SPECIFICATION TEXTS/PREVIEW SPECIFICATION

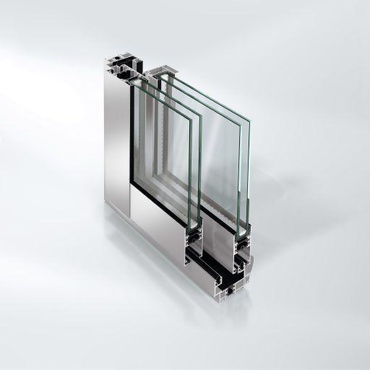

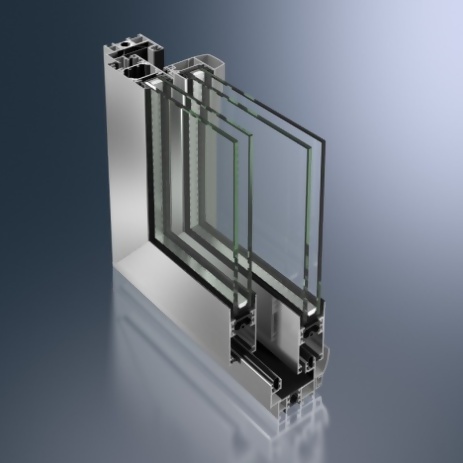

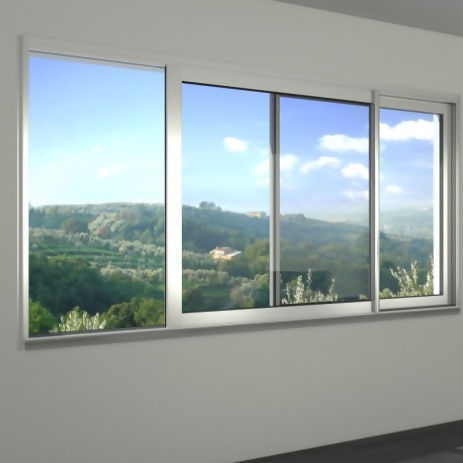

Schüco ASS 39 SC, thermally insulated aluminium sliding window and door system
With 60 mm basic frame depth (double track), 96 mm basic frame depth (single track), 106 mm basic frame depth (triple track) and 39 mm basic vent frame depth.
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).
Design features:
Sliding construction with 1 track / 2 tracks / 3 tracks.
The outer frame is mitred, the frame connections are made with precision corner cleats.
The vent frames are designed with butt joined frame connections.
The bottom, replaceable tracks are made of stainless steel / aluminium.
In the joint area, the outer frames have plastic cover profiles.
The units have a continuous drip bar outside on top.
The fixed glazing is fitted in the outer frame (single track) / vent frame (double/triple track).
With single track units, fixed glazing is designed as glazing in the outer frame, the sliding vent is positioned on the outer track.
The clearance area is fitted with special threshold and cladding profiles.
With double/triple track units, fixed glazing is designed as glazing in the fixed vent frame. All vents can also be fitted with roller carriages (moveable).
Selection of glazing gasket
The ASS 39 SC vent frames are glazed using U-shaped hat gaskets that enclose the pane edges. Glass thicknesses from 24 to 28 mm can be used. The glazing gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
Or
The ASS 39 SC vent frames are glazed using internal and external push-in gaskets. Glazing thicknesses of up to 30 mm can be used. The glazing gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
End of glazing gasket selection
Profile basic depths:
Outer frame, single track 96 mm
Outer frame, double track 50 mm
Outer frame, triple track 106 mm
Vent frame 39 mm
Profile face widths:
Outer frame, single track, top / bottom 58.5 mm
Outer frame, single track, side 47 mm
Outer frame, double/triple track 48 mm
Vent frame, top / bottom 70 mm
Vent frame, side 74 / 82.5 mm
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||
| Product passport |
|
MB1007806_EN-03 (pdf, 976 KB) | |||
