PRODUCT BENEFITS
Design
- Handle-free design solutions with clean lines
- Vent weight up to 250 kg
- Vent size (W x H): up to 3000 mm x 3000 mm
Automation

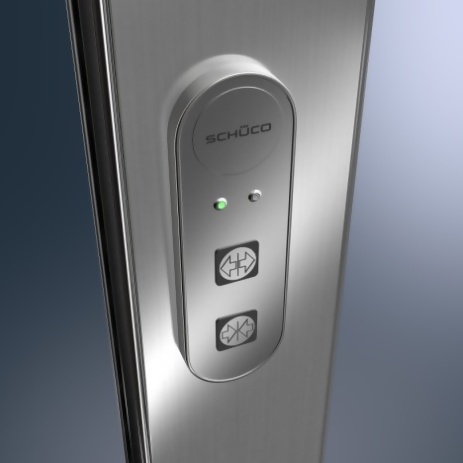

- Can be operated via a control panel integrated into the vent, external wall-mounted switch, or centrally via a building management system: with great ease and minimal effort
Security
- Can be connected to a fingerprint system or remote control
TECHNICAL INFOS
- Max. vent width
-
- 3000 mm
- Max. vent height
-
- 3000 mm
- Air permeability
-
- C
- Watertightness
-
- Class 7B
- Burglar resistance
-
- Up to RC1 N
- Wind load resistance
-
- Class C5
- Max. vent weight
-
- 250 kg
- Min.-max. vent width
-
- …3000 mm
- Surface finishes
-
- Powder
- Paint
- SYSTEM / MATERIAL
-
- Aluminium
- System type
-
- Sliding systems
- Opening type
-
- Type 2A/1
- Type 2D/1
- Number of tracks
-
- Double track
