Aluminium Window System 70 RL.HI

PREVIEW SPECIFICATION

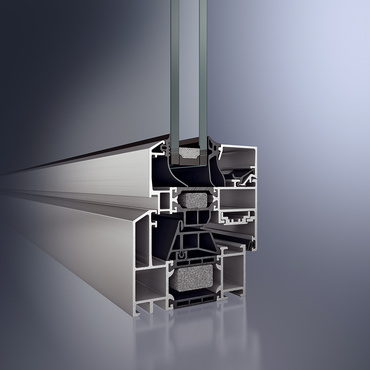

Schüco AWS 70 RL.HI, thermally insulated aluminium window system
With 80 mm basic depth.

Design features:
Outer frame extension 15 mm, mullion and transom profiles 14 mm deep and bevelled at 30°.
External glazing rebate beads of the vent frames 10 mm deep and bevelled at 30°.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.
For increased thermal insulation, glazing gaskets with fins must be used.

Profile basic depths:
Outer frame 80 mm
Mullion, transom 79 mm
Vent frame 80 mm

Profile face widths:
Outer frame 59 mm
Mullion and transom 84 mm
Vent frame (window) 33 mm
Vent frame (window door) 61 mm
Double-vent profile 67 mm
