Fabrication benefits
- Can be used for doors, windows and fixed glazing
- Very narrow profile face widths for maximum transparency
- Stainless steel 1.4307 for simple fabrication of low-maintenance units
- Installation of existing fittings components
Technical information
Specification texts

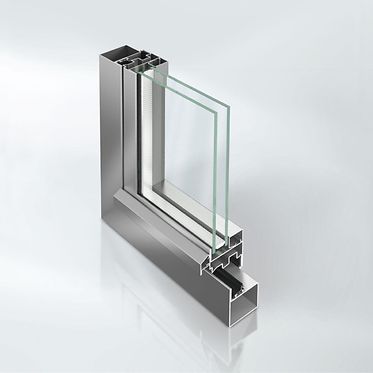

Economy 50 stainless steel windows
Stainless steel profile system for windows, material 1.4307
Design features:
The stainless steel profile system for windows, material 1.4307, with 50 mm basic depth, for indoor components and components without thermal insulation requirements.
All corner and T-joints are securely welded together.
The units are fabricated by WIG/TIG welding. The welding points must be treated by a professional and fully smoothed where visible. The instructions of the system manufacturer and the general fabrication instructions of the stainless steel information centre in Düsseldorf (D-40013) must be followed.
Glass and/or infill units of 5 to 32 mm can be used.
Face-fitted vent frame on the room side rebated by approx. 8.5 mm from the frame edge.
The weatherstrip system consists of a continuous centre weatherstrip in the window rebate area, plus a rebate weatherstrip on the inside. The inner rebate weatherstrip is inserted continuously and is not interrupted by recesses for hinges and/or corner pivots. The centre weatherstrip is formed by a plastic supplementary profile with a vulcanised weatherstrip lip, which is inserted in the frame continuously, ensuring controlled drainage and pressure equalisation of the vent rebate.
The construction is glazed using a glazing bead on one side.
Glazing bead: ???
Please select the required type of seal and delete the alternatives.
The infills are sealed using EPDM weatherstrips. Specially designed glazing beads must be used for this purpose. (Important: dry, internal areas only)
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.
End of seal selection
Profile depths:
Outer frame, transom, mullion 50 mm
Vent frame (window) 58.5 mm
The face widths given here refer to the dimensions available for delivery. For further information, please refer to our manuals. Please match the default data to your requirements.
CAD data
Jansen-Economy 50 windows – non insulated
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 3 (EN 1627) | RC 3 (EN 1627) | View onlineDownload |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 3 (EN 1627) | RC 3 (EN 1627) | View onlineDownload |
| Gutachterliche Stellungnahme | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit |
Class C5 (EN 12210) Class 9A (EN 12208) Class 4 (EN 12207) |
Class C5 (EN 12210) Class 9A (EN 12208) Class 4 (EN 12207) |
View onlineDownload |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 3 (EN 1627) | RC 3 (EN 1627) | View onlineDownload |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 2/ RC 2 N (EN 1627) | RC 2/ RC 2 N (EN 1627) | View onlineDownload (pdf, 2.7 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 1 N (EN 1627) | RC 1 N (EN 1627) | View onlineDownload (pdf, 3.9 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 2/ RC 2 N (EN 1627) | RC 2/ RC 2 N (EN 1627) | View onlineDownload (pdf, 2.7 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC2…RC3 (EN 1627) | RC2…RC3 (EN 1627) | View onlineDownload (pdf, 103.3 KB) |
