Fabrication benefits
- Small construction heights: basic profiles 6 mm, vent profiles 64 mm
- Large range of profiles and glazing beads offer design flexibility
- Acid-resistant, high grade stainless steel
- Choice of sheet metal or highly polished surface finishes
- Optional burglar and bullet resistance
- Comprehensive range of fittings
- Good thermal insulation
Technical information
Specification texts

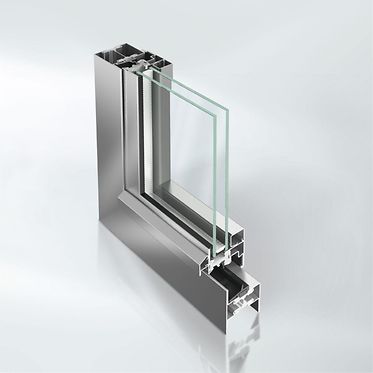

Janisol stainless steel windows
Thermally insulated stainless steel profile system for windows, material 1.4401, with a basic depth of 60 mm
Design features:
All corner and T-joints are securely welded together.
The surface of the profiles is sheet metal, the visible surfaces are polished.
The stainless steel glazing retention beads are supplied in a sheet metal design; the visible surfaces are polished.
The high-quality insulating bar securely joins the half profiles together. It withstands the short-term temperature increases during welding.
Glass and/or infills of 14 mm to 40 mm can be used.
Face-fitted vent frame on the room side rebated by approx. 8.5 mm from the frame edge.
The weatherstrip system consists of a centre weatherstrip inserted continuously in the insulation zone of the window vents and a plastic profile inserted continuously in the frame. A rebate weatherstrip is inserted continuously on the room side. It is not interrupted by recesses for hinges and/or corner pivots.
Continuous thermal insulation level within the entire construction, even in corner and sash bar areas.
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.
Profile depths:
Outer frame, transom, mullion 60 mm
Vent frame (window) 64 mm
Profile face widths:
Outer frame (glazing) 72.5 mm
Mullion 95 mm
Transom 95 mm
Vent frame (window, visible) 35 mm
Double-vent profile (window) 68 mm
CAD data
Janisol / Janisol Primo – insulated
Janisol windows – Burglar Resistance
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfzeugnis | Absturzsicherheit | Kat. A und C (DIN 18008-4) | Kat. A und C (DIN 18008-4) | View onlineDownload (pdf, 1.8 MB) |
| Prüfzeugnis | Beschuß | FB4 NS | FB4 NS | View onlineDownload (pdf, 44.4 KB) |
| Prüfzeugnis | Querzugfestigkeit | View onlineDownload | ||
| Prüfbericht | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit Bedienungskraft Tragfähigkeit Sicherheitsvorr. |
Klasse npd…C5/B5 (EN 12210) Klasse npd…E 1050 (EN 12208) Klasse 3…4 (EN 12207) Klasse 0…1 (EN 13115) Schwellenwert erfüllt |
Klasse npd…C5/B5 (EN 12210) Klasse npd…E 1050 (EN 12208) Klasse 3…4 (EN 12207) Klasse 0…1 (EN 13115) Schwellenwert erfüllt |
View onlineDownload (pdf, 6.8 MB) |
| Gutachterliche Stellungnahme | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit |
Class C5 (EN 12210) Class 9A (EN 12208) Class 4 (EN 12207) |
Class C5 (EN 12210) Class 9A (EN 12208) Class 4 (EN 12207) |
View onlineDownload |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 1 N (EN 1627) | RC 1 N (EN 1627) | View onlineDownload (pdf, 3.9 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 1 N (EN 1627) | RC 1 N (EN 1627) | View onlineDownload (pdf, 3.9 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 2/ RC 2 N (EN 1627) | RC 2/ RC 2 N (EN 1627) | View onlineDownload (pdf, 2.7 MB) |
| Gutachterliche Stellungnahme | Schallmessung | Rw=33…45dB | Rw=33…45dB | View onlineDownload (pdf, 1.3 MB) |
| Gutachterliche Stellungnahme | Einbruchhemmung | RC 1 N (EN 1627) | RC 1 N (EN 1627) | View onlineDownload (pdf, 3.9 MB) |
