Fabrication benefits
- Small basic depth and slender profile face widths
- All current types of opening possible
- Comprehensive fittings system
- Optional burglar and bullet resistance
- High level of thermal insulation
- Flexible application possibilities through system compatibility
Technical information
Documentation

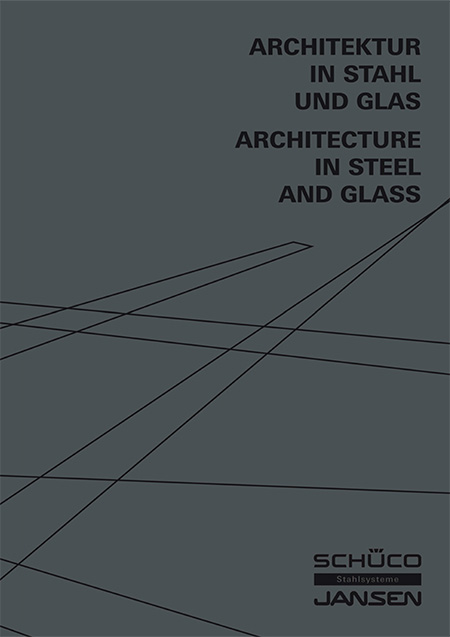

Architecture in steel and glass
Specification texts
Janisol windows

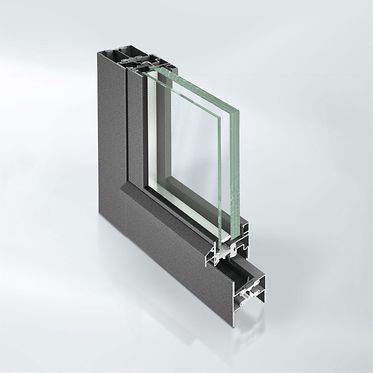

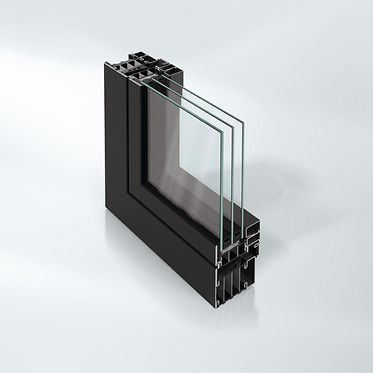

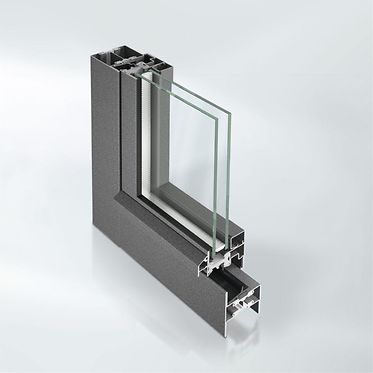

Thermally insulated steel profile system for windows with a basic depth of 60 mm.
Design features:
All corner and T-joints are securely welded together.
The high-quality insulating bar securely joins the half profiles together. It withstands the short-term temperature increases during welding.
Glass and/or infills of 14 mm to 40 mm can be used.
Face-fitted vent frame on the room side rebated by approx. 8.5 mm from the frame edge.
The weatherstrip system consists of a centre weatherstrip inserted continuously in the insulation zone of the window vents and a plastic profile inserted continuously in the frame. A rebate weatherstrip is inserted continuously on the room side. It is not interrupted by recesses for hinges and/or corner pivots.
Continuous thermal insulation level within the entire construction, even in corner and sash bar areas.
Glazing bead: ???
Please select the required type of seal and delete the alternatives.
The infills are sealed using special EPDM weatherstrips.
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.
End of seal selection
Profile depths:
Outer frame, transom, mullion 60 mm
Vent frame (window) 64 mm
Profile face widths:
Outer frame (glazing) 47.5/72.5/95 mm
Outer frame extension 25/50 mm
Mullion 70/95 mm
Transom 70/95 mm
Sash bar, fixed glazing 60 mm
Vent frame (window, visible) 35 mm
Double-vent profile (window) 68 mm
Vent sash bar (window) 65 mm
CAD data

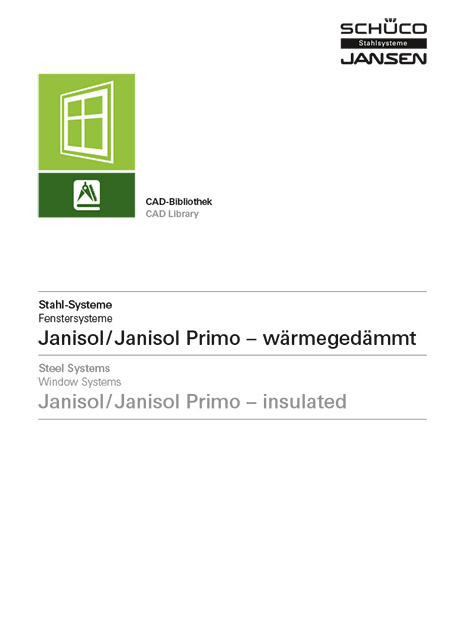

Janisol / Janisol Primo – insulated

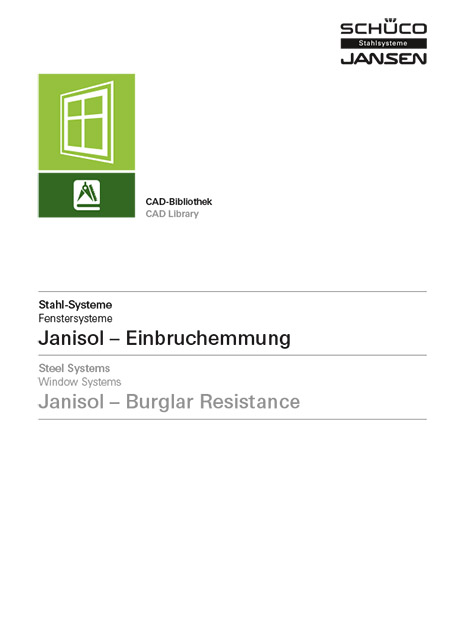

Janisol windows – Burglar Resistance

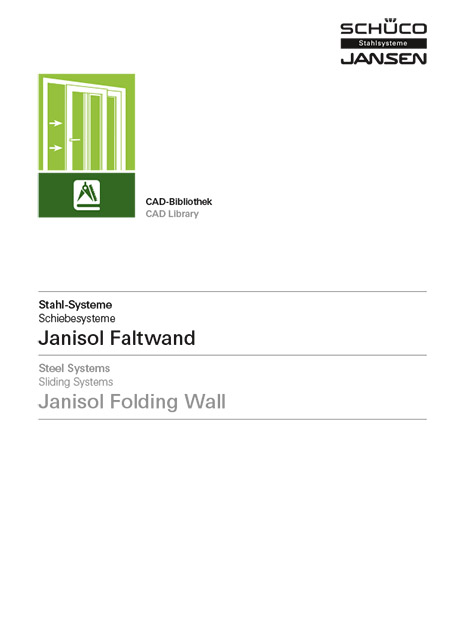

Janisol folding wall
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfbericht | Schallmessung | Rw=45dB | View onlineDownload (pdf, 471.3 KB) | |
| Prüfbericht | Schallmessung | Rw=46dB | Rw=46dB | View onlineDownload (pdf, 58.0 KB) |
| Prüfbericht | Schallmessung | Rw=44dB | Rw=44dB | View onlineDownload (pdf, 56.9 KB) |
| Prüfbericht | Schallmessung | Rw=45dB | Rw=45dB | View onlineDownload (pdf, 56.7 KB) |
| Prüfbericht | Schallmessung | Rw=44dB | View onlineDownload (pdf, 489.8 KB) | |
| Prüfbericht | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit Bedienungskraft |
Klasse C3/B3 (EN 12210) Klasse 8A (EN 12208) Klasse 3 (EN 12207) Klasse 0 (EN 13115) |
Klasse C3/B3 (EN 12210) Klasse 8A (EN 12208) Klasse 3 (EN 12207) Klasse 0 (EN 13115) |
View onlineDownload (pdf, 131.4 KB) |
| Prüfbericht | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit |
Klasse 3 (EN 12207) Klasse 8A (EN 12208) Klasse C3/B3 (EN 12210) |
Klasse 3 (EN 12207) Klasse 8A (EN 12208) Klasse C3/B3 (EN 12210) |
View onlineDownload (pdf, 69.0 KB) |
| Prüfzeugnis | Absturzsicherheit | Kat. A und C (DIN 18008-4) | Kat. A und C (DIN 18008-4) | View onlineDownload (pdf, 1.8 MB) |
| Prüfbericht | Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit Bedienungskraft Tragfähigkeit Sicherheitsvorr. |
Klasse npd…C5/B5 (EN 12210) Klasse npd…E 1050 (EN 12208) Klasse 3…4 (EN 12207) Klasse 0…1 (EN 13115) Schwellenwert erfüllt |
Klasse npd…C5/B5 (EN 12210) Klasse npd…E 1050 (EN 12208) Klasse 3…4 (EN 12207) Klasse 0…1 (EN 13115) Schwellenwert erfüllt |
View onlineDownload (pdf, 6.8 MB) |
| Prüfzeugnis | Querzugfestigkeit | View onlineDownload |
