Window AWS 112 IC

Passive house-certified aluminium window system for the most demanding thermal insulation requirements

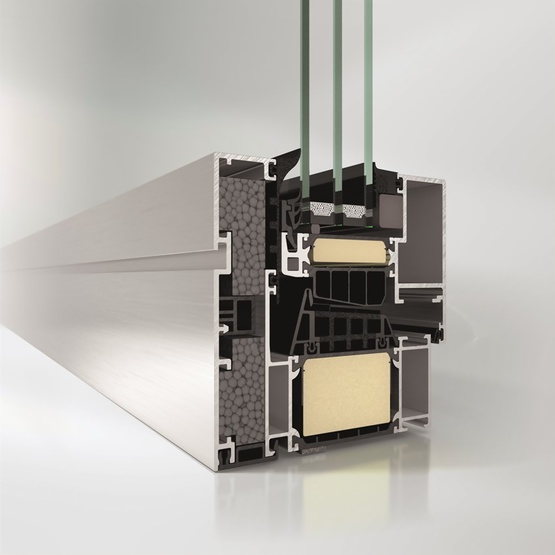

Schüco Window AWS 112 IC (Insulation Cover) was the first aluminium window worldwide with the narrow face width of 120 mm that meets the stringent criteria of passive house certification and whose profile surfaces can also be coated after rolling. It combines three substantial benefits in one system: the proven advantages of aluminium windows, excellent thermal insulation and the narrow profiles for maximum glass transparency sought by architects.

หมวดหมู่: ป้ายกำกับ:

Energy

  • Uf value = 0.8 W/(m²K) with 120 mm face width: excellent thermal insulation for aluminium windows in accordance with the passive house certification standard
  • Uw value = 0.75 W/(m²K) for the entire aluminium window: can be achieved with triple glazing with a Ug value of 0.6 W/(m²K) and a plastic spacer
  • Insulated cover profile with fixing which is free from thermal bridging for optimised thermal insulation

Design

  • New vent frame design based on the block design: achieve narrow face widths combined with large areas of glass

Automation

  • Schüco TipTronic can be used for motorised fittings solutions

Security

  • Burglar resistance certified up to RC 3

TECHNICAL INFORMATION

SYSTEM / MATERIAL
  • Aluminium
ENERGY
DESIGN
FUNCTIONS
  • Increased security
  • Increased sound reduction
System basic depth
Min. face width
  • 120 mm
Uf value of frame (≥)
Max. glass/panel thickness
  • 56 mm
Max. sound reduction Rwp
  • 47 dB(A)
Air permeability
  • Class 4
Watertightness
  • Class 9A
Burglar resistance
  • Up to RC2
Wind load resistance
  • C5/B5
Uw value of window (≥)
Surface finishes
  • Powder
  • Paint
Min.-max. glass/panel thickness
Corrosion protection class for fittings
  • Class 5

CAD DATA
