Window System Arte 2.0

Slimline steel window system with extended range of materials – for renovations which are faithful to the original style and modern residential projects

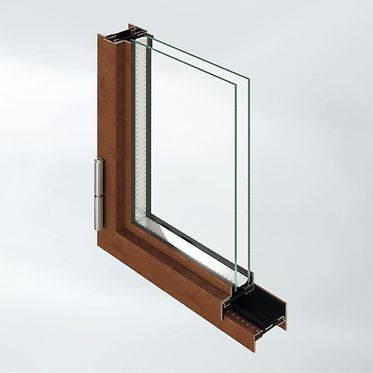

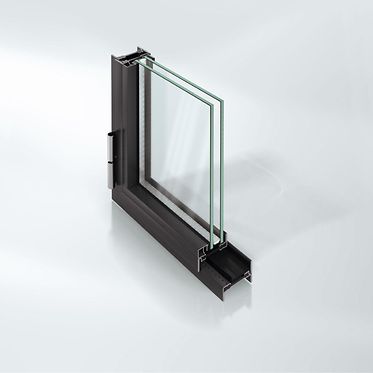

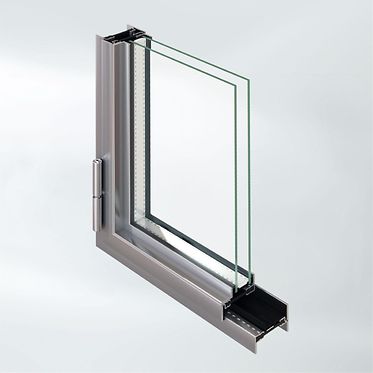

The Janisol Arte 2.0 steel profile system has been specially developed for the renovation of industrial glazing, loft glazing and windows, in accordance with the guidelines for listed buildings and to allow the value of the property to be retained. Thanks to the extended range of materials, there are now also profile versions available in stainless steel and Corten steel. With the wide variety of opening types for inward and outward-opening windows, the slimline profile system allows old side-hung, double-vent, bottom-hung, top-hung projected top-hung, sliding or horizontal pivot windows to be almost perfectly reconstructed – with excellent thermal insulation and stability as well as narrow profile face widths and the largest possible proportion of glass. Attractive window solutions, which are also ideally suited for use in modern residential buildings.

The extensive system tests, which take into account all the requirements in terms of statics, building physics, safety and security, allow for reliable planning, fabrication and installation.

หมวดหมู่:

Fabrication benefits

  • New, push-in rebate gasket
  • Double-vent design without supplementary profiles
  • New, improved surfaces with a zinc/iron coating for better welding
  • New profile geometries for optimum window constructions
  • A high level of process reliability through extensive system tests, such as wind / water / air, mechanical security and sound reduction

Technical information

System basic depth60 mm
Min. face width45 mm
Uf value of frame (≥)1.8 W/(m²·K)
Max. glass/panel thickness47 mm
Max. vent width1000 mm
Max. vent height2400 mm
Max. sound reduction Rwp45 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC2
Wind load resistanceClass C4
CE markingYes
Total basic depth60 mm
Width of vent frame60 mm
Max. vent weight150 kg
Min.-max. vent height370…2400 mm
Min.-max. vent width370…1000 mm
Outer frame face width25 mm
Vent frame face width45 mm
Max. face width of mullion80 mm
Min.-max. face width of mullion40…80 mm
Max. face width of meeting stile60 mm
Min.-max. face width of meeting stile60…60 mm
Min.-max. glass/panel thickness20…47 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects, Window
Shear bondYes
Surface finishesStainless steel, RAL, Powder, Paint, Corten steel
Glass compositionTriple glazing
ToplightYes
Operating forcesClass 1
Opening type: manual, outward-openingSide-hung, Toplight, Projected top-hung, Horizontal pivot, Vertical pivot, Horizontal/vertical pivot, Fixed light
Opening type: manual, inward-openingSide-hung, Bottom-hung, Double-vent side-hung / side-hung, Toplight, Horizontal pivot, Vertical pivot, Horizontal/vertical pivot, Fixed light
Impact resistanceClass 4
Mechanical strengthClass 4
Proof of durabilityClass 4
Uw value of window (≥)0.8 W/(m²·K)
Ug value of glass (≤)0.5 W/(m²·K)
Drainage levels2
Suitable for safety barrier loadingYes
Electronic monitoringYes
CertificatesEPD
Colour-independentYes

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Absturzsicherheit Kategorie A,C2,C3 Kategorie A,C2,C3 View onlineDownload (pdf, 1.8 MB)
Prüfzeugnis Luftdurchlässigkeit
Windwiderstandsfähigkeit
Schlagregendichtheit		 Klasse 4 (EN 12207)
Klasse C3/B3 (EN 12210)
Klasse 8A (EN 12208)		 Klasse 4 (EN 12207)
Klasse C3/B3 (EN 12210)
Klasse 8A (EN 12208)		 View onlineDownload (pdf, 246.3 KB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit		 Klasse 3…4 (EN 12207)
Klasse 7A…E1200 (EN 12208)
Klasse C2/B2..C5/B5 (EN 12210)		 Klasse 3…4 (EN 12207)
Klasse 7A…E1200 (EN 12208)
Klasse C2/B2..C5/B5 (EN 12210)		 View onlineDownload (pdf, 613.9 KB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit		 Class 3…4 (EN 12207)
Class 7A…E1200 (EN 12208)
Class C2/B2…C5/B5 (EN 12210)		 Class 3…4 (EN 12207)
Class 7A…E1200 (EN 12208)
Class C2/B2…C5/B5 (EN 12210)		 View onlineDownload (pdf, 601.2 KB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit		 Class 3…4 (EN 12207)
Class 7A…E1200 (EN 12208)
Class C2/B2…C5/B5 (EN 12210)		 Class 3…4 (EN 12207)
Class 7A…E1200 (EN 12208)
Class C2/B2…C5/B5 (EN 12210)		 View onlineDownload (pdf, 607.2 KB)
Prüfbericht Pendelschlagversuch
Bedienungskraft
Vertikallast
Verbiegen/Verwinden
Dauerlaufprüfung
Tragfähigkeit Sicherheitsvorr.		 Class 4 (EN 13049)
Class 1 (EN 13115)
Class 4 (EN 13115)
Class 4 (EN 13115)
Class 3…4 (EN 12400)
Requirement fulfilled		 Class 4 (EN 13049)
Class 1 (EN 13115)
Class 4 (EN 13115)
Class 4 (EN 13115)
Class 3…4 (EN 12400)
Requirement fulfilled		 View onlineDownload (pdf, 506.6 KB)
Prüfbericht Pendelschlagversuch
Bedienungskraft
Vertikallast
Verbiegen/Verwinden
Dauerlaufprüfung
Tragfähigkeit Sicherheitsvorr.		 Class 4 (EN 13049)
Class 1 (EN 13115)
Class 4 (EN 13115)
Class 4 (EN 13115)
Class 3…4 (EN 12400)
Exigence satisfaite		 Class 4 (EN 13049)
Class 1 (EN 13115)
Class 4 (EN 13115)
Class 4 (EN 13115)
Class 3…4 (EN 12400)
Exigence satisfaite		 View onlineDownload (pdf, 510.5 KB)
Prüfzeugnis Schubfestigkeit
Querzugfestigkeit
Schubfedersteifigkeit		 AbP
AbP
AbP		 View onlineDownload (pdf, 846.6 KB)
Prüfbericht Pendelschlagversuch
Bedienungskraft
Vertikallast
Verbiegen/Verwinden
Dauerlaufprüfung
Tragfähigkeit Sicherheitsvorr.		 Klasse 4 (EN 13049)
Klasse 1 (EN 13115)
Klasse 4 (EN 13115)
Klasse 4 (EN 13115)
Klasse 3…4 (EN 12400)
Schwellenwert erfüllt		 Klasse 4 (EN 13049)
Klasse 1 (EN 13115)
Klasse 4 (EN 13115)
Klasse 4 (EN 13115)
Klasse 3…4 (EN 12400)
Schwellenwert erfüllt		 View onlineDownload (pdf, 508.3 KB)
Gutachterliche Stellungnahme Einbruchhemmung RC 1 N/ RC 2 N/ RC 2 (EN 1627) RC 1 N/ RC 2 N/ RC 2 (EN 1627) View onlineDownload
