Window System AWS 75 PD VV.SI

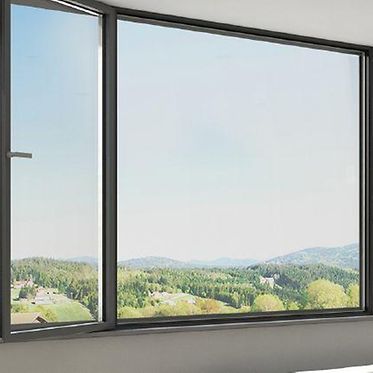

Highly insulated side-hung vent for Panorama Design window

The Schüco AWS 75 PD VV.SI (Panorama Design Ventilation Vent Super Insulation) window system is available as an opaque side-hung vent with ventilation function in different face widths – with excellent weathertightness and sound reduction values even in extreme weather conditions thanks to the split insulating bar.

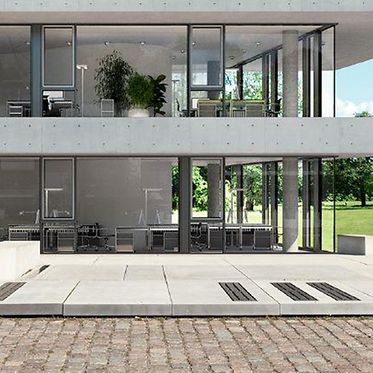

The side-hung vents, which can reach from floor to ceiling and remain permanently open during the summer, combine quick ventilation of rooms with a high degree of architectural design freedom and easy operation.

The combination with the Schüco AWS 75 PD.SI (Panorama Design Super Insulation) window system provides additional planning freedom as the system properties and design are fully compatible.

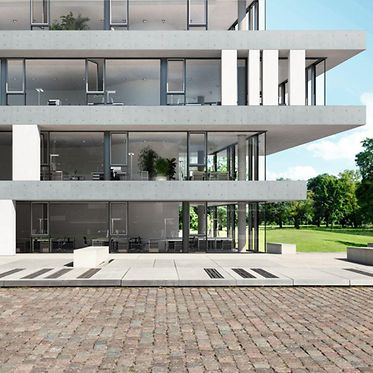

Opening units with ventilation vents open up new architectural possibilities for modern façade design, particularly in buildings with barcode architecture.

หมวดหมู่:

Fabrication benefits

  • Cover profiles and multifunctional corner pieces for easy, time-saving fabrication
  • Maximum use of identical parts within the system and within the Schüco AWS modular system
  • Intelligent components as a basis for simple, economical Schüco SimplySmart fabrication processes

Technical information

System basic depth75 mm
Max. vent width300 mm
Max. vent height3000 mm
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC2
Wind load resistanceClass C5 / B5
Total basic depth85 mm
Width of vent frame85 mm
Max. vent weight60 kg
Min.-max. vent height750…3000 mm
Min.-max. vent width170…300 mm
Outer frame face width55 mm
Vent frame face width82 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionSingle glazing
Operating forcesClass 1
TipTronicYes
Opening type: manual, inward-openingSide-hung
Opening angle70 °
Proof of durabilityClass 3
Uw value of window (≥)1.4 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Security glazingNo
Colour-independentYes

Documentation

Schüco Panorama Design Window Systems

View onlineDownload

Test documents

Document type Test type Result Classification Document no. / Download
Gutachterliche Stellungnahme Schallmessung View onlineDownload (pdf, 481.7 KB)
1-1 of 1
