Fabrication benefits

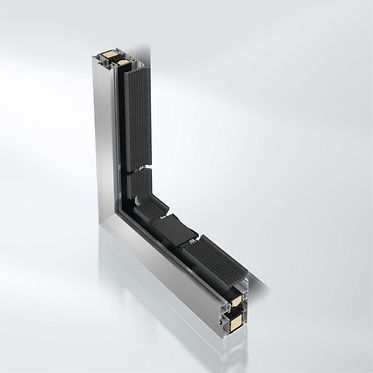

- Continuous centre gasket: faster fabrication of the centre gasket compared to those sold by the metre with gasket corners; no interruption of the gasket level at the corners and gaskets do not need to be bonded
- Improved fabrication of the glazing rebate insulation as a moulded piece; this removes the need for time-consuming, manual steps and reduces the installation time
- Schüco AvanTec SimplySmart fitting ensures efficient fabrication: flexible, simple and intuitive
- Vent parts self-positioning and installed without tools
- Fittings installation without locking bar recess on the vent facilitates faster fabrication as well as simplified, efficient locking bar preparation
- Symmetrical cavity-fitted gearbox can be used on the right and left-hand side; simplified cutting of the locking bar and reduced storage requirements
Technical information
System basic depth75 mm
Min. face width91 mm
Uf value of frame (≥)0.92 W/(m²·K)
Max. glass/panel thickness61 mm
Max. vent width1700 mm
Max. vent height2500 mm
Max. sound reduction Rwp48 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC3
Wind load resistanceClass C5 / B5
CE markingYes
Total basic depth85 mm
Width of vent frame85 mm
Max. vent weight250 kg
Min.-max. vent height540…2500 mm
Min.-max. vent width470…1700 mm
Outer frame face width51 mm
Vent frame face width40 mm
Max. face width of mullion250 mm
Min.-max. face width of mullion76…250 mm
Max. face width of meeting stile163 mm
Min.-max. face width of meeting stile148…163 mm
Min.-max. glass/panel thickness18…61 mm
Barrier-free (≤) 20 mmYes

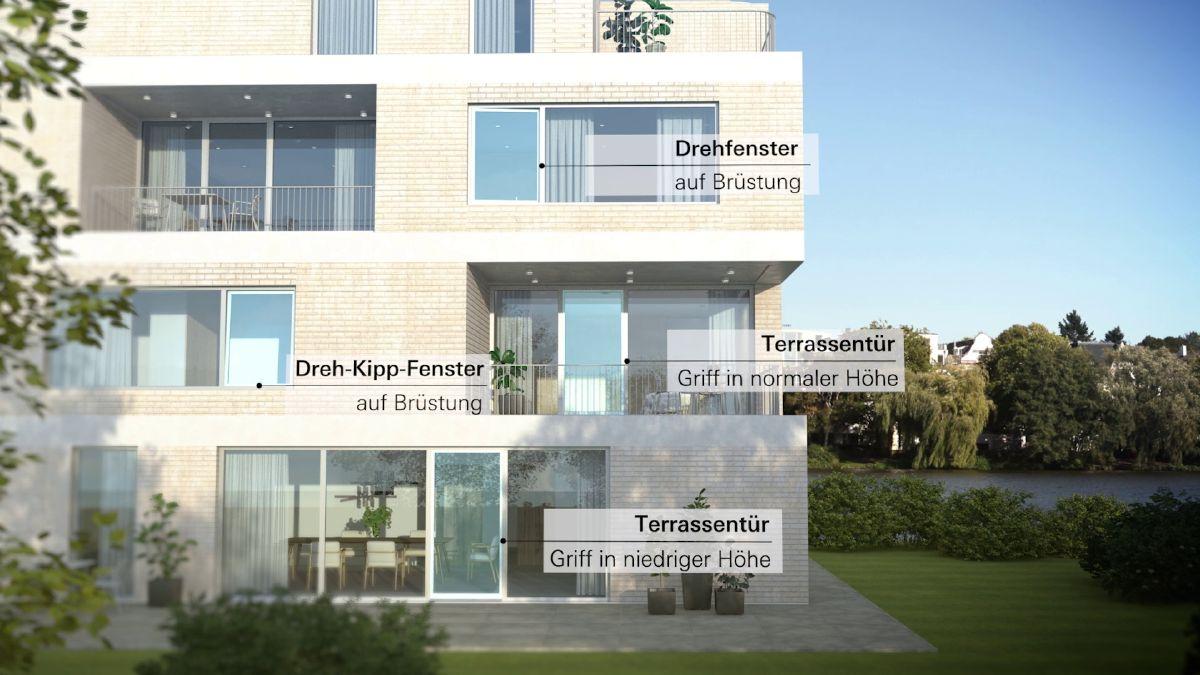

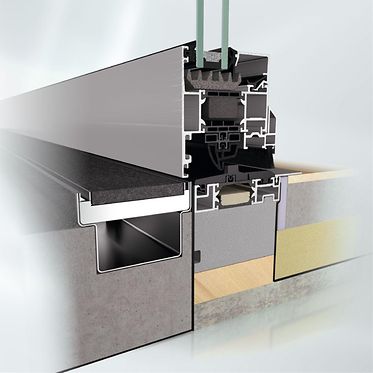

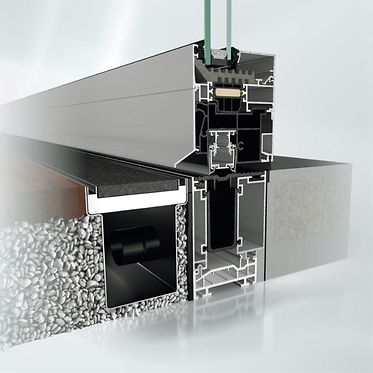

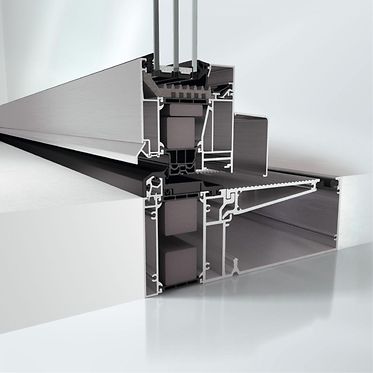

Zero-level thresholdYes

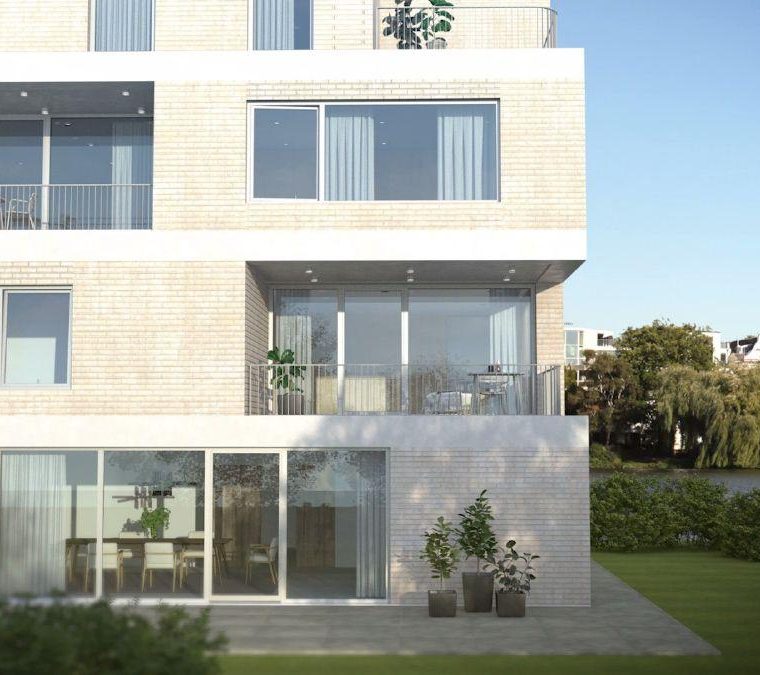

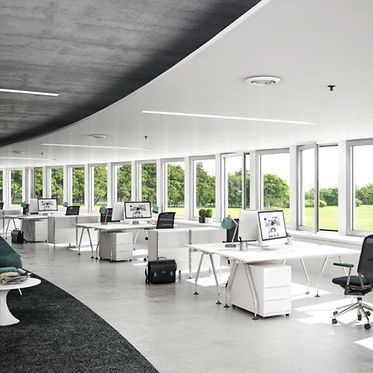

Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
ToplightYes
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040Yes
TipTronicYes

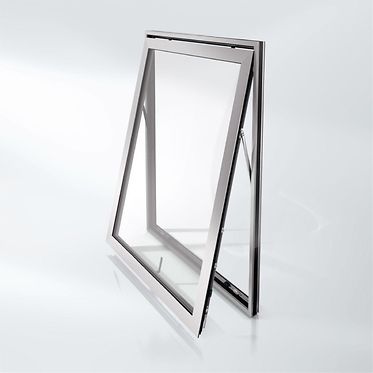

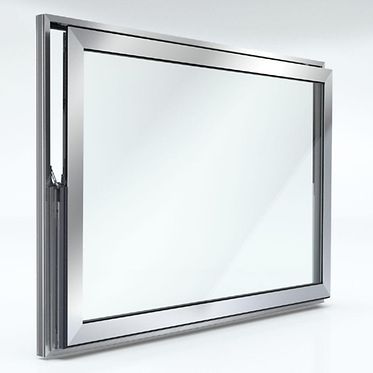

Opening type: TipTronic, outward-openingProjected top-hung
Opening type: TipTronic, inward-openingTurn/tilt, Side-hung, Bottom-hung, Toplight

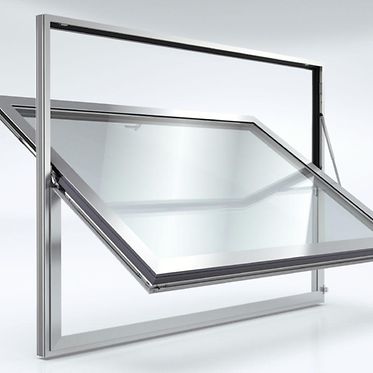

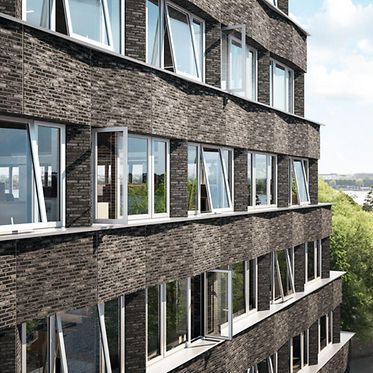

Opening type: manual, outward-openingSide-hung, Projected top-hung, Projected side-hung, Horizontal pivot, Vertical pivot

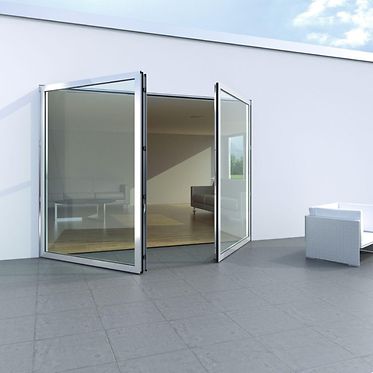

Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Horizontal pivot, Vertical pivot, Tilt-before-turn
Opening angle180 °
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Uw value of window (≥)0.8 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Integrated sun shadingYes
Security glazingYes
Suitable for safety barrier loadingYes
CertificatesGerman Sustainable Building Council (DGNB), cradle2cradle SILVER
Minergie classMinergie-P
Colour-independentYes
Documentation
[B] Schüco AWS 75 SI+
[F] Basic depth 75 mm
Order manual 1-3 – Window fittings
[Ga] Schüco AWS 75.SI+
Fabrication manual 1-3 – Window fittings

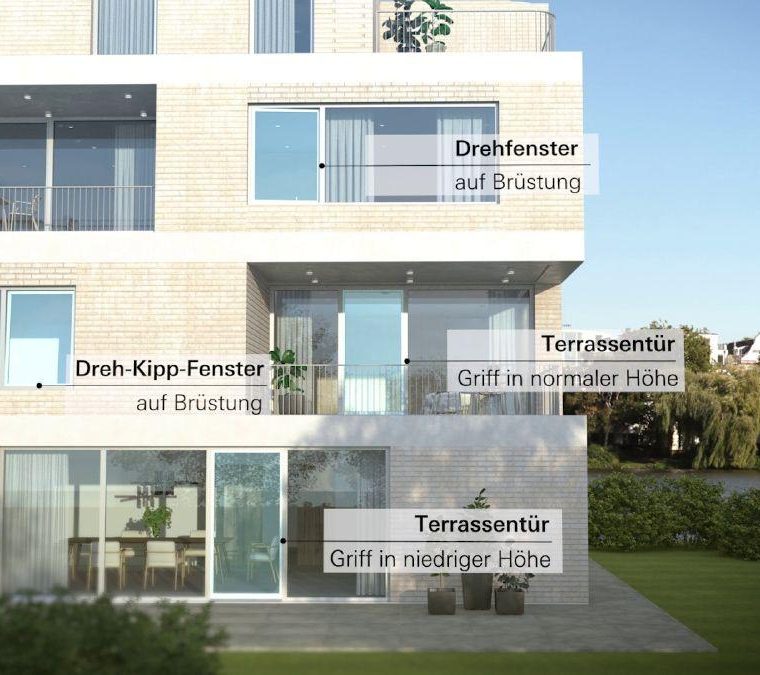

Schüco barrier-free Window Systems
Schüco Aluminium window and door systems
Mechanical security with Schüco aluminium systems
Specification texts

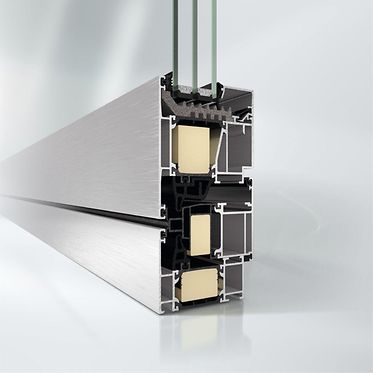

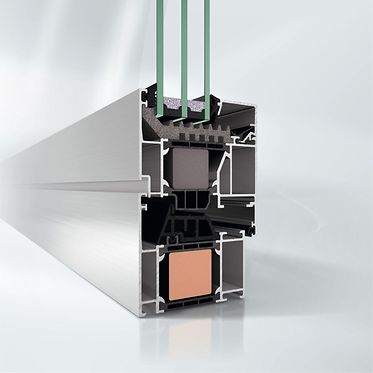

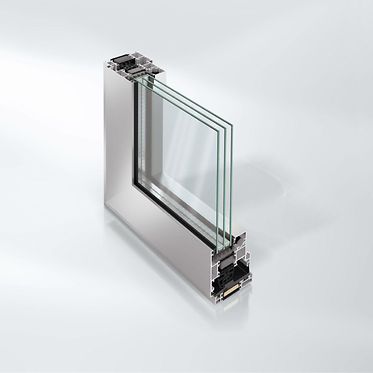

Schüco AWS 75.SI+, highly thermally insulated aluminium window system
With 75 mm basic depth.
Design features:

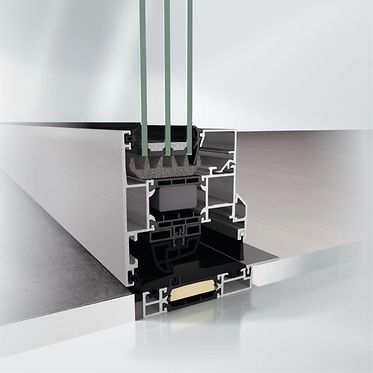

Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.

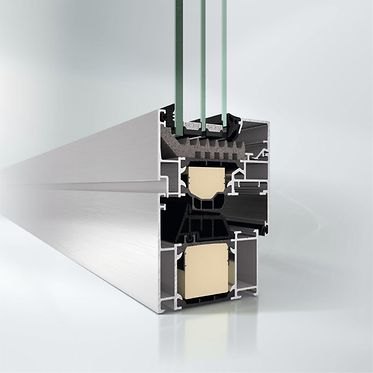

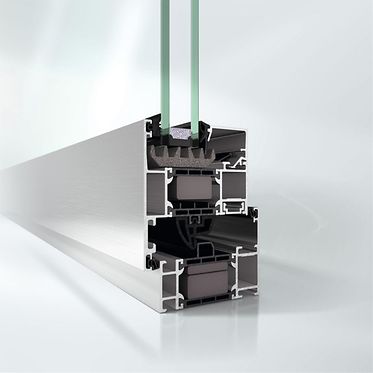

Thermally insulated insulating bars with three hollow chambers form the rebate for the co-extruded, double hollow chamber centre gasket fitted with a foam core.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.
Profile basic depths:
Outer frame, mullion, transom 75 mm
Vent frame 85 mm
Profile face widths:
Outer frame, bottom 104 mm
Outer frame, side and top 79 mm
Insert outer frame 44 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 51 mm
Double-vent profile 67 mm
CAD data
Planning principles
System drawings
Rule details
Design suggestions
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit Vertikallast Verbiegen/Verwinden Bedienungskraft Bedienungskraft |
Q100(L)=0,71; Q100(F)=1,51 600 P3=+/-3000 800 350 |
Klasse 4 Klasse 9A Klasse C5/B5 Klasse 4 Klasse 4 Klasse 2 Klasse 1 |
View onlineDownload (pdf, 233.0 KB) |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit Vertikallast Verbiegen/Verwinden Bedienungskraft |
Q100(L)=0,71; Q100(F)=1,51 600 P3=+/-3000 800 350 |
Klasse 4 Klasse 9A Klasse C5/B5 Klasse 4 Klasse 4 Klasse 2 |
View onlineDownload (pdf, 224.2 KB) |
| Prüfzeugnis | Luftdurchlässigkeit Windwiderstandsfähigkeit Schlagregendichtheit Bedienungskraft Vertikallast Verbiegen/Verwinden |
Q100(L)=0,10 ; Q100(F)=0,13 P3=+/-3000 600 800 |
Klasse 4 Klasse C5/B5 Klasse 9A Klasse 2 Klasse 4 Klasse 4 |
View onlineDownload (pdf, 209.6 KB) |
| Prüfzeugnis | Überrollbarkeit | 16,8 | Klasse 6 | View onlineDownload (pdf, 202.0 KB) |
| Prüfzeugnis | Pendelschlagversuch | 950 | Klasse 5 | View onlineDownload (pdf, 203.9 KB) |
| Prüfzeugnis | Dauerlaufprüfung Bedienungskraft Tragfähigkeit Sicherheitsvorr. |
20000
350 |
Klasse 3 Klasse 1 Anforderung erfüllt |
View onlineDownload (pdf, 423.0 KB) |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit |
Q100(L)=0.34 ; Q100(F)=0.31 V1: 600 / V2: 250 1800 |
Klasse 4 V1: Klasse 9A / V2: Klasse 6A Klasse C2/B3 |
View onlineDownload (pdf, 216.7 KB) |
| Prüfzeugnis | Pendelschlagversuch | 450 | Klasse 3 | View onlineDownload (pdf, 207.4 KB) |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit |
Q100(L)=0.34 ; Q100(F)=0.31 V1: 600 / V2: 250 1800 |
Klasse 4 V1: Klasse 9A / V2: Klasse 6A Klasse C2/B3 |
View onlineDownload (pdf, 215.5 KB) |
| Prüfzeugnis | Einbruchhemmung | Einbruchhemmend | RC 2/ RC 2 N | View onlineDownload (pdf, 515.2 KB) |
